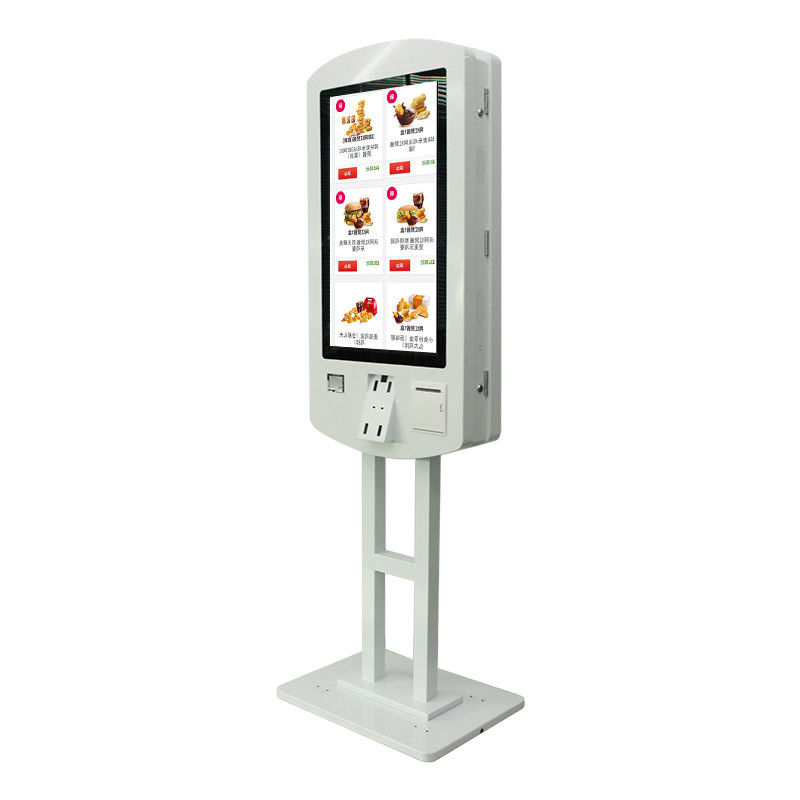

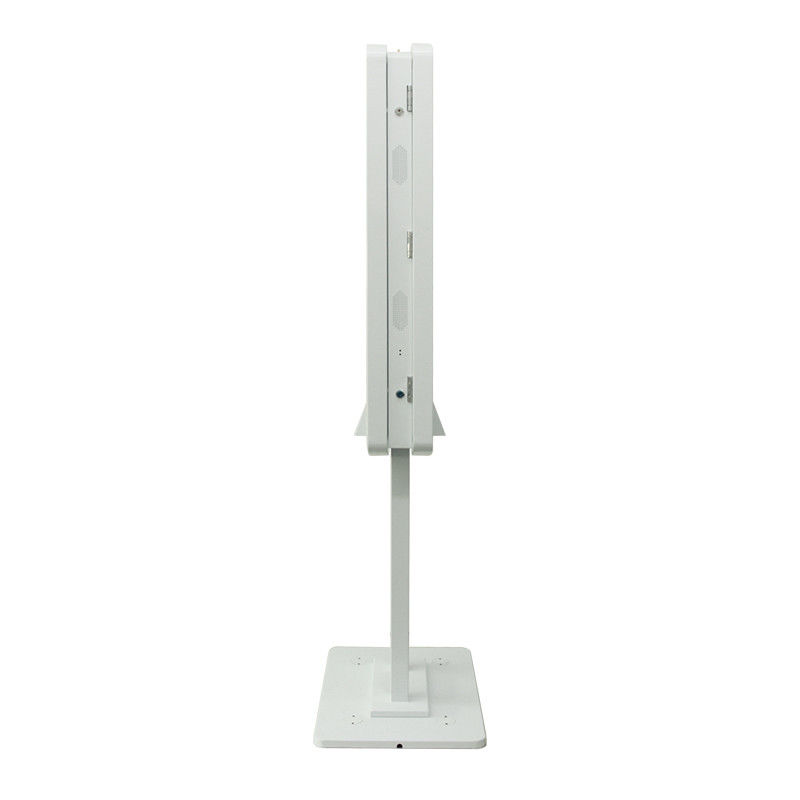

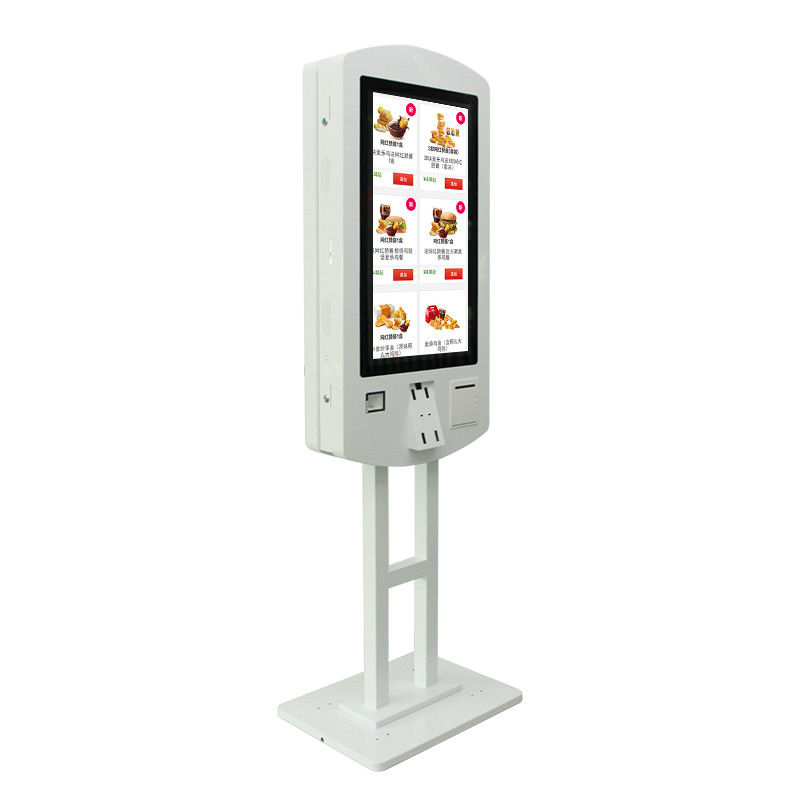

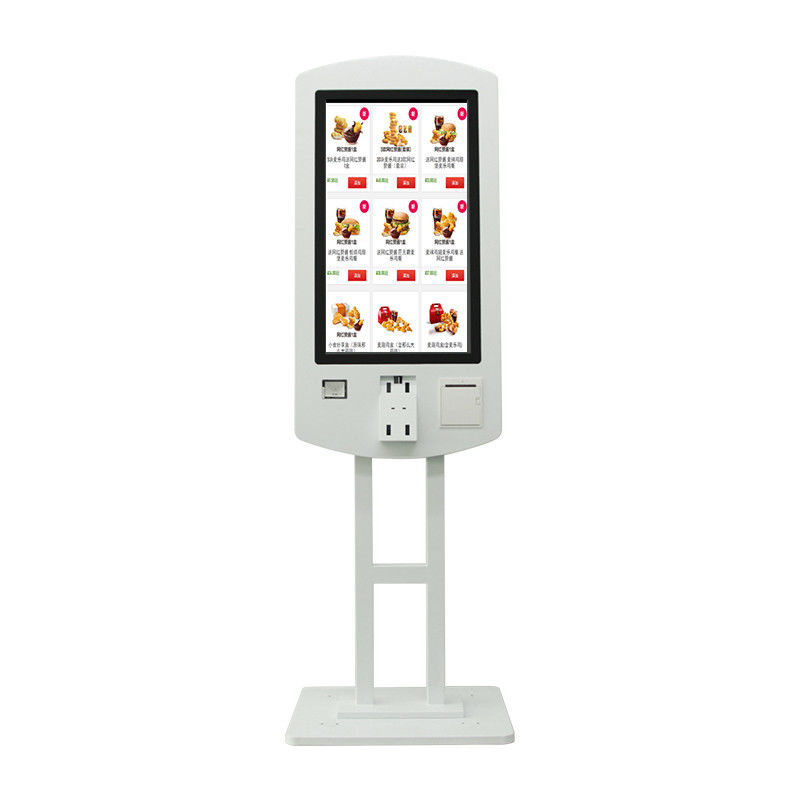

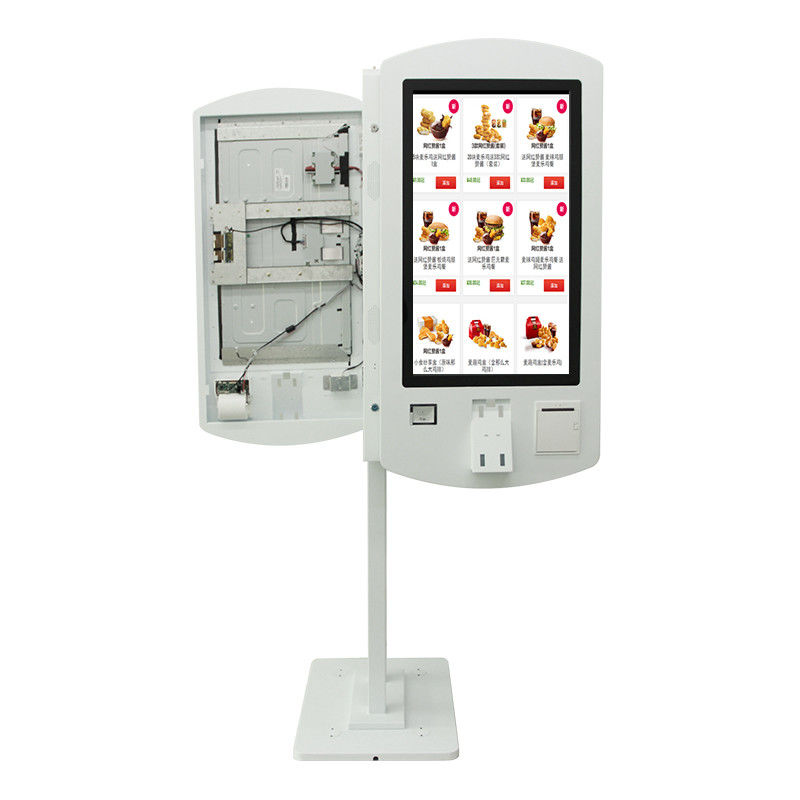

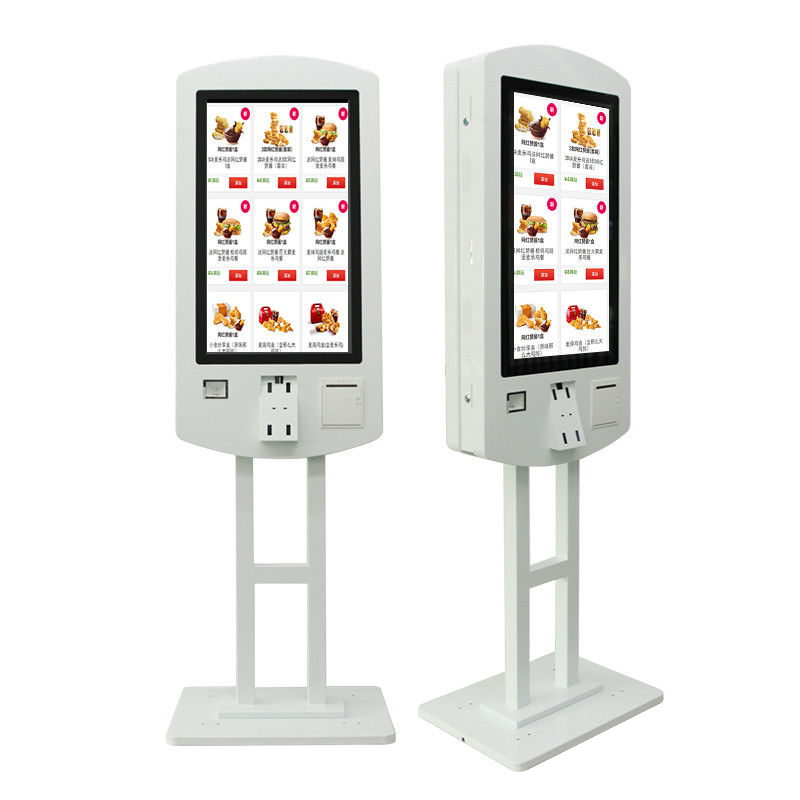

24 32 inch Double sided Touch screen order bill acceptor payment LCD kiosk
Smart Auto Self Service Payment Kiosk Solution:
1. Fashionable appearance, aluminum alloy frame design, with high-grade toughened glass
2. Lower power consumption, Capacitive Touchscreen 10 Point touch
3. With anti-theft lock design, Safer to use in public places
4. With 80mm thermal printer and QR/Barcode Scanner, Camera optional. NFC
5. Shape Design & LOGO Customization Accepted
Windows system
self-service payment kiosk Main board specifications: | |
System: | X86 system (Standard is Windows 7/ windows XP, if you want windows 8 or win10, please tell us before order) |
CPU: | Intel I3 dual core four thread 1.8GHZ 3217U |
Harddisk: | WD / Seagate SATA 500G /M sata SSD 128G |
Memory: | DDR3 1600 4G (Option: 8G) |
Graphics card: | CPU integrated Graphics display core |
Sound card: | Realtek ALC662 HD Audio integrated 6 channel sound effect, support high fidelity 5.1 |
Power supply: | low power ultra thin power supply |
External ports: | DC IN*1, HDMI OUT*1, VGA OUT*1, USB3.0*2, USB2.0*2, WLINE RJ45*1, AUDIO*2 |
Display: | support synchronous asynchronous double display |
Android system
Automatic order terminal payment kiosk android system Main board specifications: | |
System: | Android 7.1 or above |
CPU: | Rockchip Quad core RK3288 2+8 |
Memory: | Standard EMMC 8G (Option: 16/32) |
Flash Memory: | Standard DDR 1G (Option: 2G) |
Internet: | WIFI/WAN LINE (Option: 3G/4G) |
port | DC12V*1,USB*1,OTG*1,WLIN RJ45*1 |
Capacitive Touch screen specifications: | |||||||||
Touch technology: | Capacitive (G+G) touch screen, support 10 points touch points. | ||||||||
Main chip: | LG/EETI | ||||||||
Touch mode: | Finger, touch pen≥3mm | ||||||||
Response time: | 4ms | ||||||||
Touch life: | Durable single touch ≥5000 million ,Anti light: full angle anti light. | ||||||||
Physical resolution | 32768*32768 | ||||||||
Accuracy: | ≤±0.5mm | ||||||||
communication mode: | full speed USB | ||||||||
Touch area (mm): | 344*194 | 410X231 | 476X268 | 521X293 | 597X336 | 699X393 | 941X529 | 1074X604 | 1210X680 |
