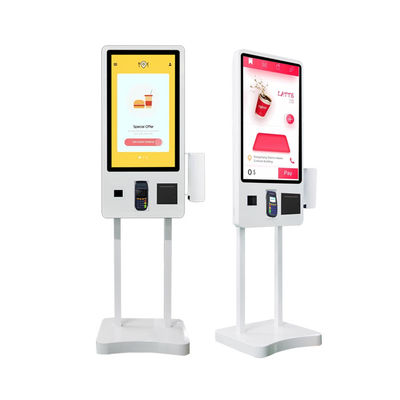

32 Inch Restaurant Self Ordering  Kiosk 400 Nits With Wireless Pagers

32 Inch Restaurant Self Ordering Kiosk 400 Nits With Wireless Pagers

  • High Light

    32 Inch Restaurant Self Ordering Kiosk

    ,

    Restaurant Self Ordering Kiosk 400 Nits

    ,

    32 inch self service ordering kiosk

  • Screen Size
    32'' LCD
  • Material
    Metal Case+ Capactive Touch Panel
  • OS
    Android OS Windows OS Option
  • Others
    Coaster Pagers Wireless Guest Waiter Queuing System
  • Pagers
    15-20 Charging At The Same Time
  • Application
    Restaurant Payment Kiosk
  • Place of Origin
    China
  • Brand Name
    Genevision
  • Certification
    CE FCC ROSH CCC
  • Model Number
    MAD-320
  • Minimum Order Quantity
    1pcs
  • Price
    $500-$600
  • Packaging Details
    Carton box with bubble first, then wooden case package
  • Delivery Time
    5-15 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10000pcs/Month

32 Inch Restaurant Self Ordering Kiosk 400 Nits With Wireless Pagers

32 inch restaurant ordering terminal payment kiosk with wireless pagers

LCD Panel Spec
ITEM NO.:
Automatic Self Order Kiosk
Screen size:
21.5'' 24'' 27'' 32'' 43''
Screen resolution:
1920*1080
Display color:
16.7M
Contrast
3000:1
Brightness (nits):
400 nits
Visual angle:
178°/178°
Response time
5ms
Touch panel
10- touch point capacitive touch screen
Android OS Configuration
Mainboard:
Android RK3288,COTEX-A17 Quad-Core,1.8 GHZ;
RAM:
DDR3, 2GBDDR3, 4GB DDR3 optiona
ROM
8G EMMC((16GB/32GB/64GB optional)
Interface:
MIPI output*1; eDP output *1; LVDS output1 *1;5*USB; TTL serial-port *3;Amplifier output
Network support:
100M Ethernet ,WIFI, blue booth4.0(4G&external GPS optional )
Panel life:
Above 50,000hrs
Operating Version
Android 7.1
Remark : Android RK3399 and PC configurations I3 I5 I7 are also available .
Appearance specifications
Surface:
Anti-scratched tempered glass
Color:
White color (customized color)
Power supply:
AC 110–240, 50-60Hz
Thermal printer
Front opening thermal printer,with automatic paper cutter (58 & 80mm paper)
Scanners:
QR code / Barcode scanner /NFC
POS machine Holder
POS machine is provided by the customer
Wireless pagers: optional
15-20pcs wireless pagers waiting food system
Card reader:optional
IC card reader, RFID reader, NFC card reader
Application:
Self order kiosk for restaurant/ store/supermarket/ new retail /station/ airport
Function
Restaurant self order kiosk,store self payment kiosk,pharmacy self checkout machine,resort self service kiosk(self order kiosk, self payment kiosk)



32 Inch Restaurant Self Ordering  Kiosk 400 Nits With Wireless Pagers 0

32 Inch Restaurant Self Ordering  Kiosk 400 Nits With Wireless Pagers 1

wireless pagers system
It's consists of a Keypad Transmitter for the caller and a Pager Receiver for the one who will be called. When the caller is ready to offer service, they can press the corresponding number on the keypad to send an ID to the pager. And the people holding the pager will know the information that the dishes or service are ready to be offered and take it at earlier time.
