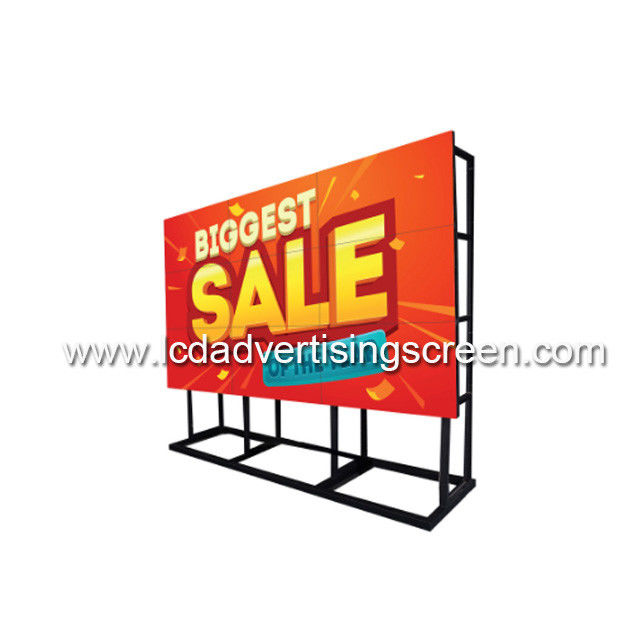

55inch Seamless Bezel With 3.5mm Digital Signage 500cd High Brightness
1. Use DID panel
The unique DID (Digital Information Display) panel technology has become the focus of attention in the display industry. The revolutionary breakthrough of DID panel lies in ultra-high brightness, ultra-high contrast, ultra-durability and ultra-narrow-edge applications, which solves the technical obstacles of liquid crystal display in public display and digital advertising signs. Generally speaking, the brightness of LCD screens used in televisions or computers is only 250 ~ 300cd / m2, and the brightness of LCD screens with DID panels is as high as 700cd / m2 and the contrast ratio is as high as 10000: 1, which is twice as high as that of traditional computer or TV LCD , Three times the average rear projection. Therefore, professional LCD monitors with DID panels are clearly visible even under strong outdoor light.
2. High brightness
Compared with TV and PC LCD screens, LCD splicing screens have higher brightness. The brightness of TV or PC LCD screen is generally only 250 ~ 300cd / ㎡, while the brightness of LCD LCD splicing screen can reach 700 cd / ㎡ (46 ″). 3. High-contrast DID LCD screen has a contrast ratio of 3000: 1 (46 ″), It is more than double than the traditional PC or TV LCD screen, and three times that of general rear projection.
3. Image processing technology
The LCD splicing screen can clearly reproduce low-pixel images in a Full HD display; de-interlacing technology to eliminate flicker; de-interlacing algorithm to eliminate "aliasing"; dynamic interpolation compensation, 3D comb filtering, 10-bit digital brightness and color Enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling and other international leading technologies.
4. Better color saturation
The color saturation of ordinary CRT is only about 50%, and DID LCD can reach 92% high color saturation. This is due to the color calibration technology developed for the product. With this technology, in addition to color calibration for still images, Color calibration can also be performed on dynamic pictures, so as to ensure accurate and stable picture output.
5. A wider perspective
PVA (Patterned Vertical Alignment) technology is the "image vertical adjustment technology". With this technology, the viewing angle can reach more than 178 ° (horizontal and vertical).
6, better reliability
The ordinary LCD screen is designed for TV and PC monitors, and does not support continuous use day and night. The LCD splicing screen is designed for monitoring centers and exhibition centers, and supports continuous use 7x24 hours.
7, high viewing angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle high enough to display vivid colors throughout the screen with virtually no distortion.
8, ultra-thin narrow bezel design
The 3.5mm ultra-narrow bezel of our video wall creates a visually stunning digital wall that delivers dynamic content and immerses the viewer. The 55” screens can be combined to create a virtually seamless large screen.
LCD Panel specification:
|Basic Info||Panel Brand||Panel Model||MG-550|
|Diagonal Size||55"||Model Alias|
|Panel Type||a-Si TFT-LCD , LCM||Storage Temp.||-20 ~ 60 °C|
|Pixel Features||Pixel Format||1920(RGB)×1080, FHD||Dot Pitch||0.124×0.372 mm|
|Configuration||RGB Vertical Stripe||Pixel Pitch||0.372×0.372 mm|
|Mechanical Size||outline Demension||1213*684*90mm||Outline Dim.||1213*684*90mm|
|Outline Features||Form Factor||Flat Rectangle||Orientation||Landscape / Portrait|
|Aspect Ratio||16:9 (H:V)||Videowall Seam||3.5 mm (Active to Active)|
|Holes & Brackets||Side mounting holes, Rear mounting holes|
|Other Features||Weight||13.5/14.2Kgs (Typ./Max.)||Surface||Antiglare (Haze 3%), Hard coating (2H)|
|Basic Information||Brightness||500 cd/m² (Typ.)||Contrast Ratio||4000:1 (Typ.) (Transmissive)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)||Optical Mode||S-IPS, Normally Black, Transmissive|
|Viewing Direction||Symmetry||Response Time||8 (Typ.)(G to G) ms|
|Power Consumption||82.1W (Typ.)|
|Power supply||AC 110V - 240V, 50/60HZ|
|Storage Temperature||-7 to 65 Celsius degree|
|Normal Working Temperature||0 to 50 Celsius degree|
55-inch LCD splicing screen (3.5mm bezel 500 brightness) Application scenarios:
I. Information display terminals for transportation industries such as airports, ports, terminals, subways, highways, etc.
2. Financial and securities information display terminals
3. Commercial (bar, KTV, real estate sales center), media advertising, product display and other display terminals
Fourth, education training / multimedia video conference system, conference room
V. Smart dispatching room, video monitoring, control room, radio and television, large-scale studio / performance venue
6. Military, government, city and other emergency command systems
Seven, mining, energy security monitoring system
Eighth, fire control, meteorology, maritime, flood control, transportation hub command system
