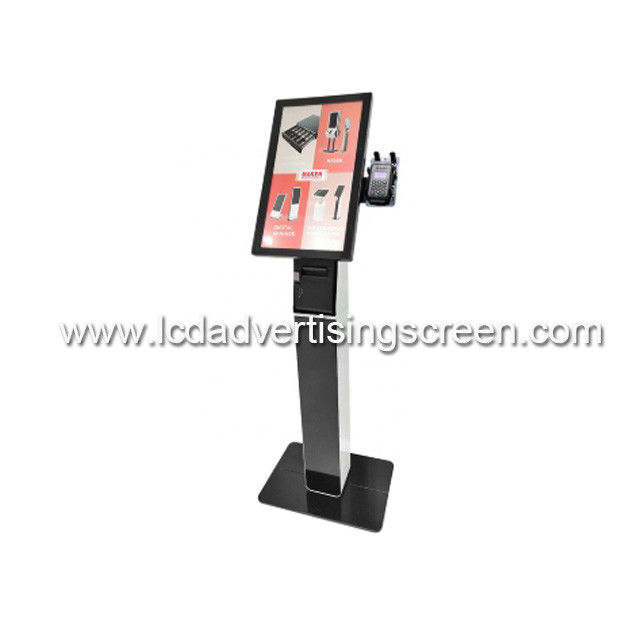

Restaurant 21.5inch Self Service Signage With Capacitive Touch Screen

Restaurant 21.5inch Self Service Signage With Capacitive Touch Screen

  • High Light

    21.5inch Self Service Signage

    ,

    Capacitive Touch Screen Self Service Signage

    ,

    21.5inch Restaurant Digital Signage

  • Screen Size
    21.5inch
  • Touch Screen
    10-point PCAP Touch
  • System
    Windows Or Android
  • Material
    Metal And Tempered Glass
  • Application
    Shopping Mall, Library, Supermarket Etc.
  • Wheels
    On The Base
  • Place of Origin
    CHINA
  • Brand Name
    GENEVISION
  • Certification
    CE, FCC, ROHS, CCC
  • Model Number
    MG-215
  • Minimum Order Quantity
    10PC
  • Price
    USD1300-USD1500/PC
  • Packaging Details
    Carton and wooden box
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000PC per month

Restaurant 21.5inch Self Service Signage With Capacitive Touch Screen

21.5inch Self Service Ordering Digital Signage With Capacitive Touch Screen With Thermal Printer



Product Quick Details:

1. 21.5 inch IPS screen

2. 10-point capacitive touch screen

3. Windows or android system inbuilt

4. Internet connection by WIFI, LAN, 4G network

5. wall mount or floor stand type



Product Features:



Attractive and engaging platform to spotlight your self-service application. As an international computer kiosk hardware manufacturer, we not only provide you Kiosk metal enclosure, but also supply semi-finished and finished Kiosk machines which are integrated with high quality LCD, touch screen monitor, keyboard, card reader, cash acceptor, coin acceptor, scanner, printer, computer and etc, whether you are looking for an information Kiosk/internet Kiosk/HR Kiosk/healthcare Kiosk/retail Kiosk/ticketing Kiosk, or you are looking for a financial Kiosk or payment terminal, we can deliver the solution to your need in a fast turnaround.



product design is simple and atmospheric, more aesthetic, cost-effective, support wall mount and floor-mounted installation, easy installation, rich maintenance door, easy maintenance and convenient industrial-grade parts, fine workmanship, humanized detail design



Can be widely used in restaurants, large supermarkets and other scenarios, saving manpower, saving time and enhancing interaction with customers


Configuration

• Name branded computer, dual-core CPU, RAM 1G above, HDD 250G above (specification may differ according to different applications), Industrial power supply.
• 21.5"-86"TFT LCD, with PCAP touch screen.
• Built-in speakers 2*5W
• Steel enclosure, solid structure with door lock for inner components. Environment-protective paint finishing, various colors available
• FCC, CE, ROHS approval



Product Application:


1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3.Non-profit Organizations:Telecommunications, post offices, hospital, schools

4.Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

6.Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.



Product Specification:



Technical Parameter for LCD Panel Panel Size 21.5 inch real color LCD screen
Aspect Ratio 16:9
Active Area 476*268mm
Max. Resolution 1920*1080
Dot Pitch 0.63mm(H) x 0.63mm(W)
Number of Color 16.7M
Brightness 250cd/m2
Contrast Ratio 1200:1
Responsive Time 8ms
Panel Life above 50000 hours
Storage Medium Flash memory card 2gb to 36gb for the capacity
Support Ad files Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio formats MP3
Photo formats JPG
OSD Language English, Chinese, French, German, Italian, Spanish,Arabic
Audio output stereo L/R, 5W*2, 8Ω
Power supply AC 110V - 240V, 50/60HZ
Storage Temperature -7 to 65 Celsius degree
Normal Working Temperature 0 to 50 Celsius degree



Windows Main board Specification:

CPU I3, i5, i7
Memory DDR3 4G
SSD 128G
SSD HDMI out*1,USB *4 ,LAN *1, VGA*1
System Win10 OS



Android Main board Specification:

CPU Quad core, Frequency 1.8GHz
RAM DDR3 2G
Memory 8G
SSD HDMI out, USB, TF card, SD card, RJ45
System Android 6.0





Application:

This Touch Screen Information Kiosk is ideal to be deployed for self-service information inquiry, as well as product/service/company image display
 Mainly targeted for self-service information inquiry in unsupervised or semi-supervised positions: Tourism, health care, government, hospitals, restaurants, financial services, shopping malls, universities, hotels, airports, gas stations, railway stations and other public areas.

Restaurant 21.5inch Self Service Signage With Capacitive Touch Screen 0Restaurant 21.5inch Self Service Signage With Capacitive Touch Screen 1Restaurant 21.5inch Self Service Signage With Capacitive Touch Screen 2

FAQ:

1. About Factory:
We specialize in digital display , touch screen kiosk, interactive whiteboard and self-service kiosk over years, with 20,000 square meters workshop and 50+ workers.
2. About Sample:
Sample is availble. We always supply sample to our clients for testing and many products we prepared stock.
3. About OEM:
Welcome, We have our own hardware factory and component engineer.Please send your own design and logo,we could make it as your idea/design.
4. About Quality:
We have very strict quality controlling which promises the goods we produced are always of the best quality.
5. About Warranty:
1 years warranty, full responsibility for warranty. We are very confident in our products, if any issue, we will deal with it immediately.
6. About Service:
We provide global after-sales service.
