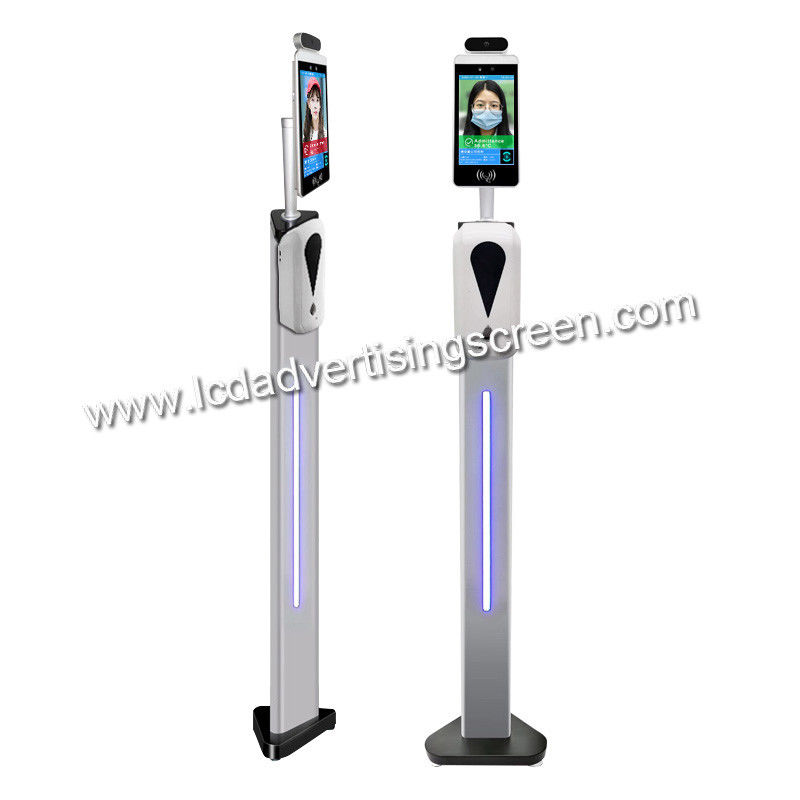

Access Control 0.1℃ Accuracy Face Recognition Infrared Thermometer

Access Control 0.1℃ Accuracy Face Recognition Infrared Thermometer

  • High Light

    0.1℃ Accuracy Face Recognition Infrared Thermometer


    DC12V Face Recognition Infrared Thermometer


    EMMC 8G lcd infrared thermometer

  • Usage
    Laser Infrared Thermometer
  • Temperature Range
  • Accuracy
  • Theory
    Infrared Thermometer
  • Product Name
    Infrared Thermometer
  • Color
  • Warranty
    1 Year
  • Application
    Measure Temperature,Widely
  • Type
    Infrared Thermometer
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard export package
  • Delivery Time
    2-15 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability

Access Control 0.1℃ Accuracy Face Recognition Infrared Thermometer

Door access control Face recognition school office sensor fever temperature scanner in dynamic body detection


1.Automactic gold cross infrared dynamic scanner on the screen of sensor face recognition and boady temperature control.

2.With 8 inch floor stands or in single kiosk for desktop and on the wall.

3.Origional displayer company for 17 years with high warranty of 1 year guarantee.

4.Have MIPS software on the displayer.

5.With high digital mainboard and in home and office displayer.


Model MG-08D
Camera Resolution 200W pixel
Type Binocular wide dynamic camera
Focusing distance 50-150cm
White balance automatic
Screen Size 8.0inch IPS LCD
Resolution 800×1280
Processor CPU RK3288 Quad core /RK3399 six core /MSM8953 eight core
Parts Memory EMMC 8G
  Fill light LED and Infrared double fill light
Interface Network module Supports Ethernet,wireless(WIFI)
Audio Support 2.5W/4R speaker
USB port 1 road USB OTG,1 road USB HOST standard A port
Serial 1 road RS232 Serial port
Function Relay output 1 door open signal output
Wiegand interface One Wiegand 26/34 output, one Wiegand 26/34 input
Upgrade button Support Uboot upgrade button
Wired network 1 RJ45 Ethernet socket
Face Detection Supports detection and tracking of multiple people at the same time
Face library support Up to 30,000
1: N face recognition Support
1: 1 face comparison Support
Stranger detection Support
Identify distance Support
UI interface configuration Support
Remote device upgrade Support
Device interface Interfaces include device management, personnel / photo management, record query, etc.
Deployment method Support public cloud deployment, privatized deployment, LAN use, stand-alone use
Infrared thermal imaging module Human temperature detection Support
Temperature detection distance 1 Meter
Temperature measurement accuracy ≤ ±0.2℃
Temperature measurement range 10℃~42℃
Thermal Field of View 32 X 32 ℃
Visitors' temperature is normal and released directly Support
Body temperature over temperature alarm Support (body temperature alarm value can be set)
General parameters Protection class IP65, certain outdoor dustproof and waterproof function
Power DC12V(±10%)
Operating temperature ﹣10℃~60℃
Storage temperature -20℃~60℃
Power consumption 13.5W(Max)
Installation method Gate bracket installation
Equipment size 238.24*128*25(mm)
Weight 1.45kg

MG-08D vertical temperature measurement face recognition access management module, using Rockchip

RK3288 / RK3399 / Qualcomm MSM8953 high-performance hardware platform, equipped with industrial binocular

camera and face biometric technology, as well as infrared thermal imaging module, support Mask recognition.

It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc.,

which can be applied to gate passages and access control attendance to achieve safe and efficient access control for personnel.
