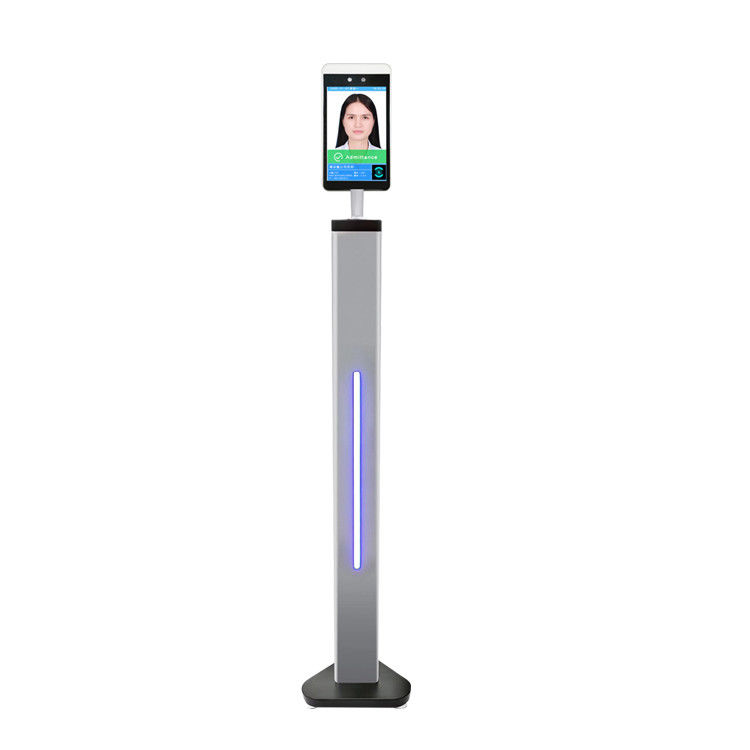

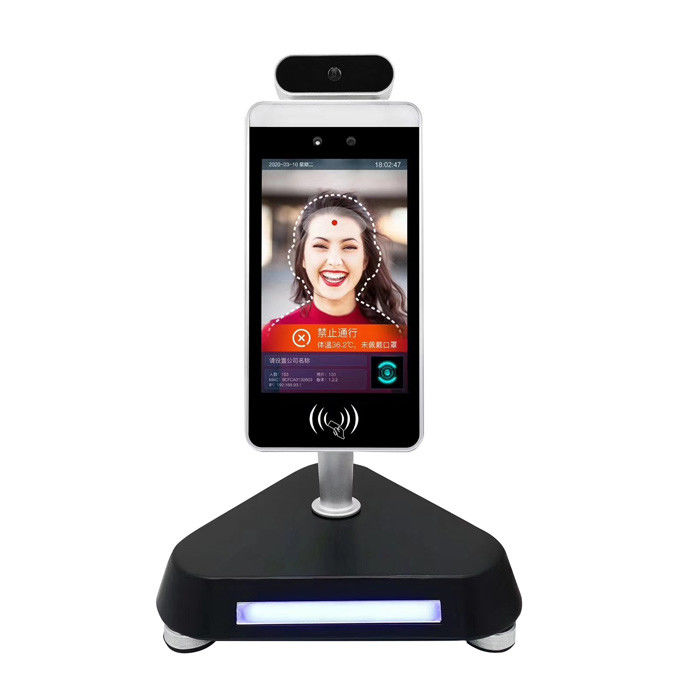

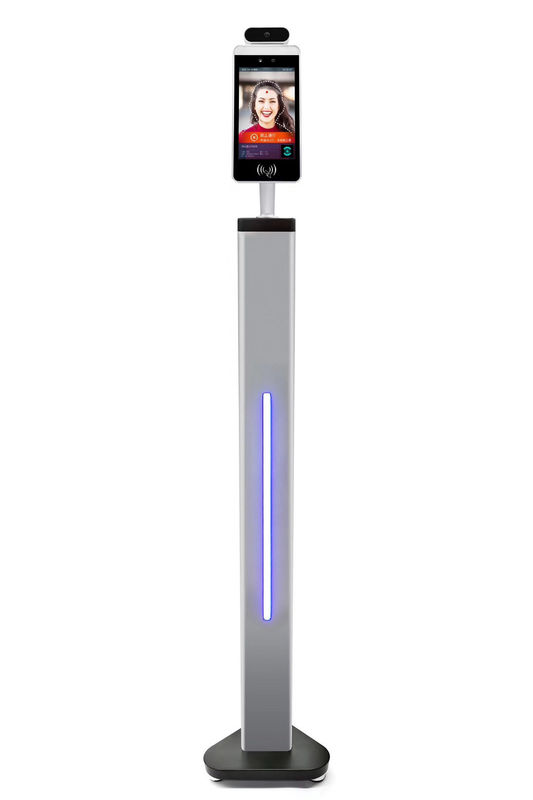

IPS LCD DC12V Face Recognition Infrared Temperature Kiosk
-
High Light
Face Recognition Infrared Temperature Kiosk
,DC12V Infrared Temperature Kiosk
,IPS LCD Body Temperature Kiosk
-
Resolution800×1280
-
TypeBinocular Wide Dynamic Camera
-
White BalanceAuto
-
Size8.0 Inch IPS LCD Screen
-
TouchInfrared Sensor
-
Abnormal TemperatureAlarm
-
PowerDC12V
-
Place of OriginChina
-
Brand NameGenvsion
-
CertificationCE FCC RoHS
-
Model NumberMG-080
-
Minimum Order Quantity1PCS
-
Packaging DetailsStandard export package
-
Delivery Time2-15 DAYS
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000PCS
IPS LCD DC12V Face Recognition Infrared Temperature Kiosk
Face recognition devices infrared sensotr displayer 8 inch door access control Conductive face scanner
Quick details:
Face recognition detector:
Wall mounted sensor face recognition detector has 30000 capacity of face storage.
2.Infrared sensor gate control for schools,commercials,construction office.etc.
3.Wifi software sensor body face motion detection.
4.Quick response tiem for five seconds fever detection.
5.No contact scanner face recognition man body face scanner.
Specification:
| Model | MG-08D | |
| Camera | Resolution | 200W pixel |
| Type | Binocular wide dynamic camera | |
| Focusing distance | 50-150cm | |
| White balance | automatic | |
| Screen | Size | 8.0inch IPS LCD |
| Resolution | 800×1280 | |
| Processor | CPU | RK3288 Quad core /RK3399 six core /MSM8953 eight core |
| Parts | Memory | EMMC 8G |
| Fill light | LED and Infrared double fill light | |
| Interface | Network module | Supports Ethernet,wireless(WIFI) |
| Audio | Support 2.5W/4R speaker | |
| USB port | 1 road USB OTG,１ road USB HOST standard A port | |
| Serial | 1 road RS232 Serial port | |
| Function | Relay output | 1 door open signal output |
| Wiegand interface | One Wiegand 26/34 output, one Wiegand 26/34 input | |
| Upgrade button | Support Uboot upgrade button | |
| Wired network | 1 RJ45 Ethernet socket | |
| Face Detection | Supports detection and tracking of multiple people at the same time | |
| Face library support | Up to 30,000 | |
| 1: N face recognition | Support | |
| 1: 1 face comparison | Support | |
| Stranger detection | Support | |
| Identify distance | Support | |
| UI interface configuration | Support | |
| Remote device upgrade | Support | |
| Device interface | Interfaces include device management, personnel / photo management, record query, etc. | |
| Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | |
| Infrared thermal imaging module | Human temperature detection | Support |
| Temperature detection distance | 1 Meter | |
| Temperature measurement accuracy | ≤ ±0.2℃ | |
| Temperature measurement range | 10℃~42℃ | |
| Thermal Field of View | 32 X 32 ℃ | |
| Visitors' temperature is normal and released directly | Support | |
| Body temperature over temperature alarm | Support (body temperature alarm value can be set) | |
| General parameters | Protection class | IP65, certain outdoor dustproof and waterproof function |
| Power | DC12V(±10%) | |
| Operating temperature | ﹣10℃~60℃ | |
| Storage temperature | -20℃~60℃ | |
| Power consumption | 13.5W(Max) | |
| Installation method | Gate bracket installation | |
| Equipment size | 238.24*128*25(mm) | |
| Weight | 1.45kg | |
