Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk

Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk

  • High Light

    1920×1080 Self Service Ordering Kiosk

    ,

    350cd/M2 Self Service Ordering Kiosk

    ,

    240V Self Service Touch Screen

  • Video Formats
    MP4
  • Image Formats
    JPEG/BMP/TIFF/PNG/GIF
  • Menu Language
    Chinese/English( Multiple Language Supported)
  • Power Supply
    AC100~240V 50 /60 HZ
  • Working Temperature
    0℃~50℃
  • Storage Temperature
    '-25℃~60℃
  • Storage Humidity
    10%~90%
  • Color/appearance
    White Colour
  • Body Dimension
    (height)1070mm*(width)512mm*116mm
  • Place of Origin
    China
  • Brand Name
    Genvsion
  • Certification
    CE FCC RoHS
  • Model Number
    MG-320HTP
  • Minimum Order Quantity
    1PCS
  • Packaging Details
    Standard export package
  • Delivery Time
    2-15 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1000PCS

Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk



32 inch order machine modern intelligent touch self-help all-in-one self-help order machine

Quick detail:

The using process

1.Touch screen starting order

2.Select the dishes, and add to cart, buy now

3.Check the order information and then click the "confirm order", choose to eat-in or packaged

4.Select payment method: pay treasure, WeChat,

5.Pay for success, please take receipts; Waiting at the front desk station take food

Specifications:

Specification
Model No. MAD-320
Panel size 32" TFT-LCD panel with LED backlight
Display area(mm)/mode 708mm(H)×398mm(V) 16:9
Max Resolution 1920×1080 Full HD
Display color 16.7M
Pixel Pitch(mm) 0.51mm(H) x 0.51mm(W)
Brightness (nits) 350cd/m2
Contrast 1200:1
Visual angle 178°/178°
Response time 5ms
Life(hrs) >60,000(hrs)
Detailed functions
Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio format Wave/MP3/WMA/AAC
Image formats JPEG/BMP/TIFF/PNG/GIF
Image resolution 480P/720P/1080P
OSD display( screen menu display)
Menu language Chinese/English( Multiple Language Supported)
Power
Power supply AC100~240V 50 /60 HZ
Maximum power consumption ≦108W
Standby power consumption <5W
Temperature
Working temperature 0℃~50℃
Storage temperature -25℃~60℃
Working humidity 20%~85%
Storage humidity 10%~90%
Appearance
Color/appearance white colour
Body Dimension (height)1070mm*(width)512mm*116mm
Main material Metal shell and 3mm thickness tempered glass
Installation wall mounted or floor stand
PC mainboard
CPU Intel I3-4005U CPU (4GB RAM,128GB SSD),Windows 10 OS
Connection to Internet wifi, LAN cable
interface USB*4, VGA,HDMI output,RJ45
Touch screen 10 dots capacitive touch screen
Other hardware Thermal printer and QR code scanner
Accessory Power Cables, English Manual
Warranty one year

Description:

For modern people, due to various reasons people tend to be more and more to the fast food restaurant reservations,

the development of modern catering industry, with all kinds of restaurants
The continuous improvement of the service, the restaurant industry market competition becomes increasingly fierce.
Intelligent self-service order machine, is the collection computer technology, network technology, communication technology,

intelligent automation technology in the integration of the human-computer interaction devices, realize the unattended,

simple operation and convenient query. A new way of catering management and service means, make the service self-support chartered, humanized management, dining restaurant



Advantages

1Enhance the operational efficiency of the restaurant,

2Save Labour, and reduce operating costs;

3.Reduce the wrong single, leakage rate;

4.Improve the service quality and management level;

5.Enhance customer dining experience, improve customer viscosity;

6.Improve enterprise brand image and increase the profit of the enterprise;

7.Installation is simple, easy to use, life-long service, once and for all

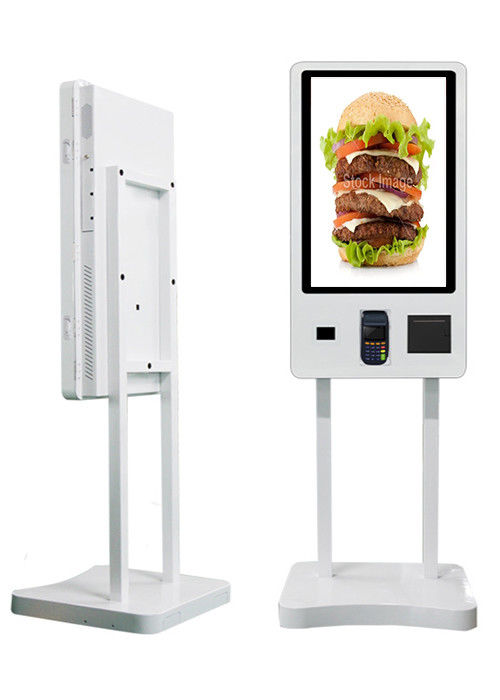

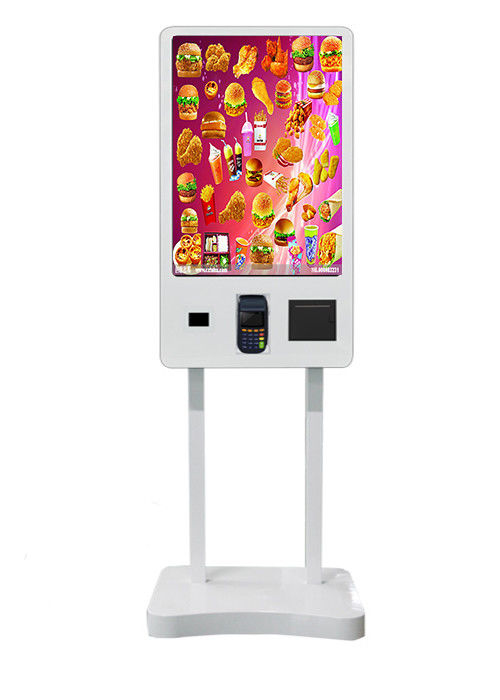

Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk 0

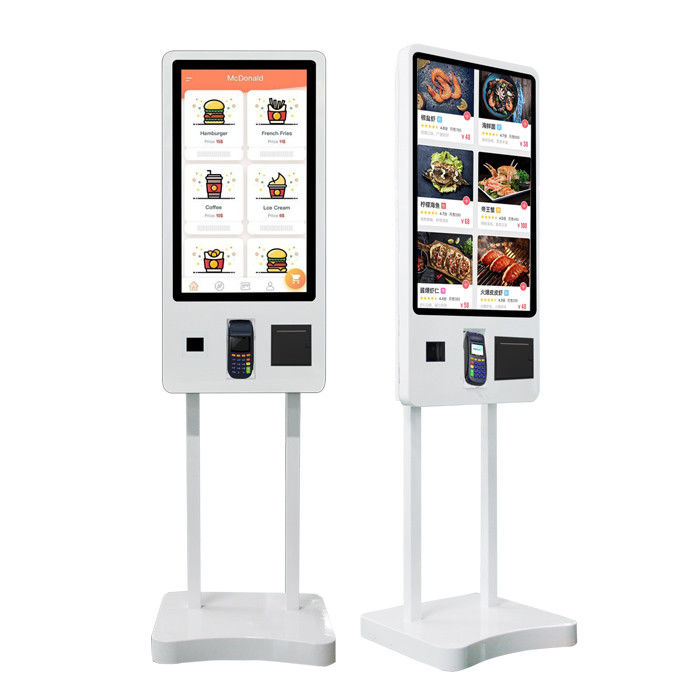

Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk 1

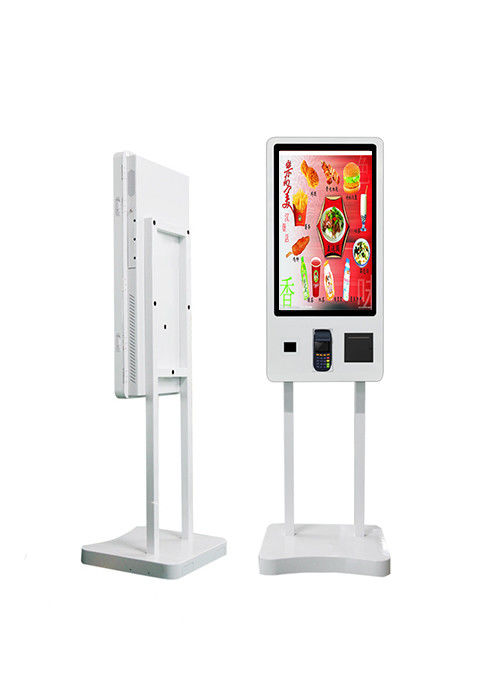

Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk 2

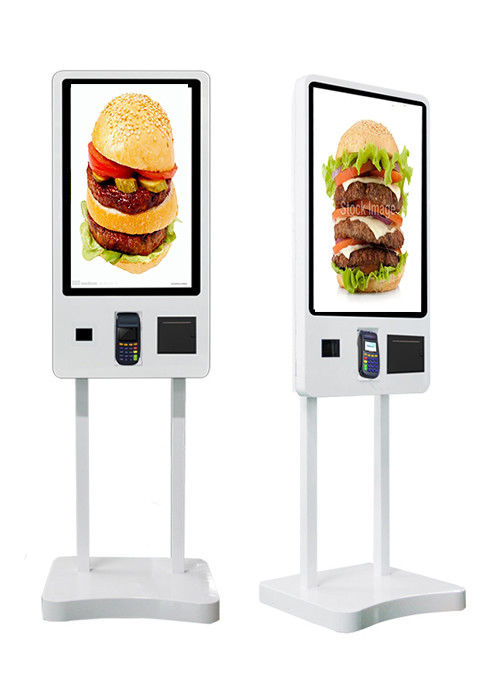

Touch Screen 350cd/M2 1920×1080 Self Service Ordering Kiosk 3
