1920*1080 TFT Transmissive Infrared Temperature Kiosk
-
High Light
Transmissive Infrared Temperature Kiosk
,TFT Infrared Temperature Kiosk
,1920*1080 Lcd Infrared Thermometer
-
TypeTFT
-
Resolution1920*1080
-
InterfaceConnector
-
Brightness400 Cd/m2
-
Product NameDisplay Screen Panel Module
-
Display ModeTransmissive
-
ApplicationMonitor
-
BacklightWLED
-
Size8inch
-
Luminance350cd/m2 Or Customized
-
Response Time6.5ms (Typ.)(G To G)
-
Display Color16.7M
-
Video FormatMPG
-
MaterialTFT LCD Display
-
ItemBacklight Lcd Screen 85inch
-
Music FormatMP3
-
Place of OriginChina
-
Brand NameGenvsion
-
CertificationCE FCC RoHS
-
Model NumberMG-215IA
-
Minimum Order Quantity1PCS
-
Packaging DetailsStandard export package
-
Delivery Time2-15 DAYS
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000PCS
1920*1080 TFT Transmissive Infrared Temperature Kiosk

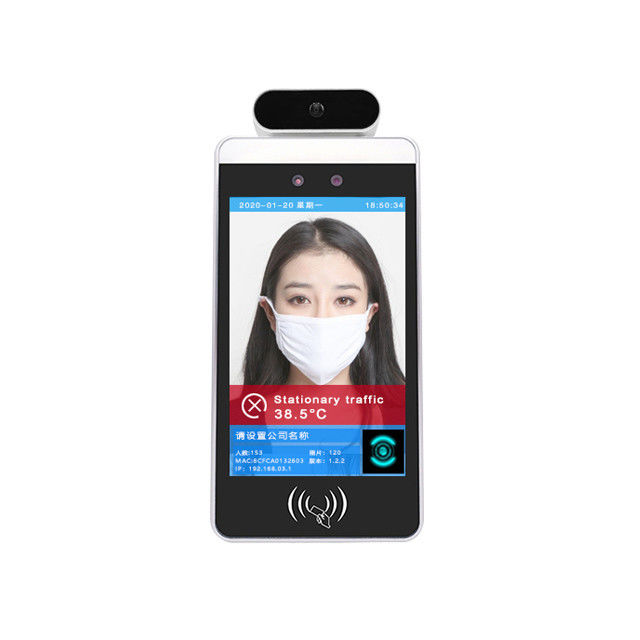

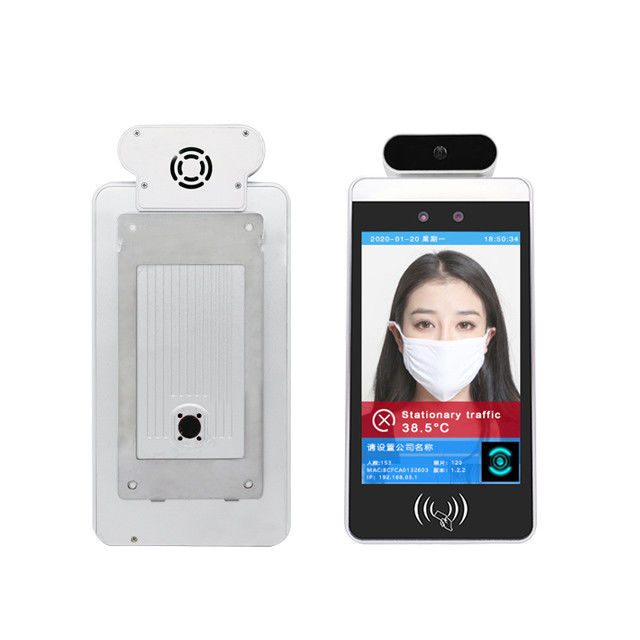

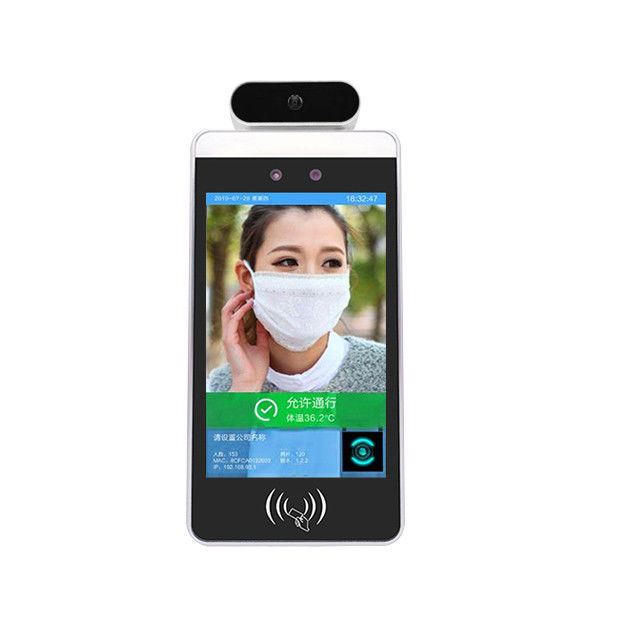

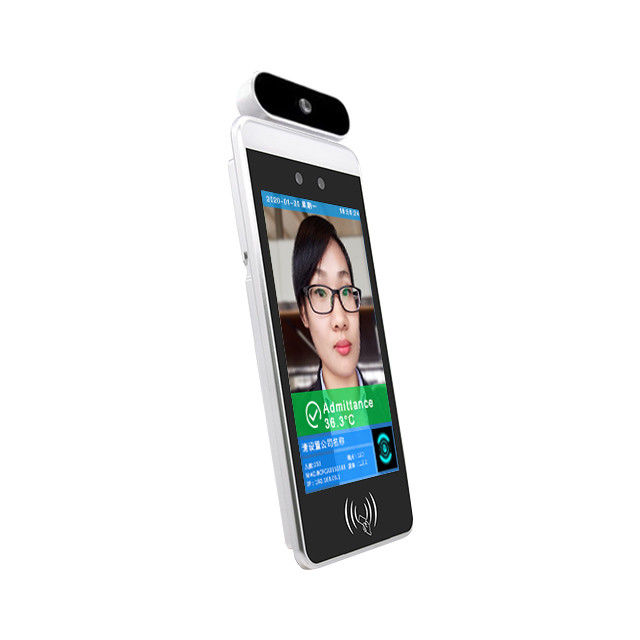

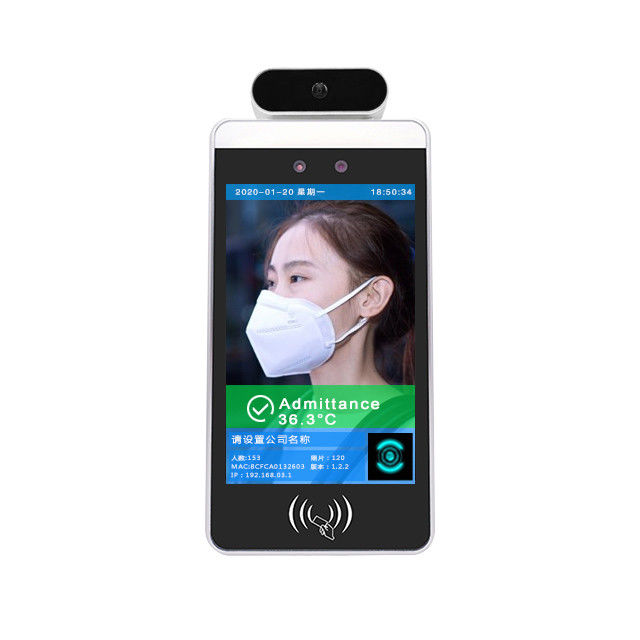

Face Recognition Infrared door scanner kiosk facial digital screen devices 8 inch school gate control
Quick details:
Door controller digital scanner infrared sensor kiosk face recognition machine is in 8 inch screen.
wIth detection motion dynamic scanner for self conductive fever detection alarm solid chrome surface.
in face storage of 30,000 capacities.different kind of lcd screen for choice.Wall mounted installation,stand
desktop standing floor door scanner.
Specification:
| Model | MG-08D | |
| Camera | Resolution | 200W pixel |
| Type | Binocular wide dynamic camera | |
| Focusing distance | 50-150cm | |
| White balance | automatic | |
| Screen | Size | 8.0inch IPS LCD |
| Resolution | 800×1280 | |
| Processor | CPU | RK3288 Quad core /RK3399 six core /MSM8953 eight core |
| Parts | Memory | EMMC 8G |
| Fill light | LED and Infrared double fill light | |
| Interface | Network module | Supports Ethernet,wireless(WIFI) |
| Audio | Support 2.5W/4R speaker | |
| USB port | 1 road USB OTG,１ road USB HOST standard A port | |
| Serial | 1 road RS232 Serial port | |
| Function | Relay output | 1 door open signal output |
| Wiegand interface | One Wiegand 26/34 output, one Wiegand 26/34 input | |
| Upgrade button | Support Uboot upgrade button | |
| Wired network | 1 RJ45 Ethernet socket | |
| Face Detection | Supports detection and tracking of multiple people at the same time | |
| Face library support | Up to 30,000 | |
| 1: N face recognition | Support | |
| 1: 1 face comparison | Support | |
| Stranger detection | Support | |
| Identify distance | Support | |
| UI interface configuration | Support | |
| Remote device upgrade | Support | |
| Device interface | Interfaces include device management, personnel / photo management, record query, etc. | |
| Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | |
| Infrared thermal imaging module | Human temperature detection | Support |
| Temperature detection distance | 1 Meter | |
| Temperature measurement accuracy | ≤ ±0.2℃ | |
| Temperature measurement range | 10℃~42℃ | |
| Thermal Field of View | 32 X 32 ℃ | |
| Visitors' temperature is normal and released directly | Support | |
| Body temperature over temperature alarm | Support (body temperature alarm value can be set) | |
| General parameters | Protection class | IP65, certain outdoor dustproof and waterproof function |
| Power | DC12V(±10%) | |
| Operating temperature | ﹣10℃~60℃ | |
| Storage temperature | -20℃~60℃ | |
| Power consumption | 13.5W(Max) | |
| Installation method | Gate bracket installation | |
| Equipment size | 238.24*128*25(mm) | |
| Weight | 1.45kg | |
Service conditions:
1.It was installed with software before factory,if you need special functions,pls contact after sale service.
2.Water proof is IP 65,please keep it in the door.
3.The working temperature is between 0-40degree.
4.Need cloude server or local server for far control.
Attentions:
1. During the installation and use of the product, all electrical safety
regulations must be strictly observed.
2. Please use the power adapter provided by the regular manufacturer.
For specific requirements of the power adapter, see the product parame-
ter table.
3. When installing on the gate, please make sure that the product is
installed firmly.
4. If the product does not work properly, please contact the after-sales
service personnel. Do not disassemble or modify the product in any way.
(The company does not assume any responsibility for problems caused by
unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed
outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all
passwords and other related product security settings, and keeping your
username and password properly.
7. If the equipment does not work properly, please do not disassemble it
for repair, otherwise it will affect the equipment warranty.
8. Avoid extreme or extreme environments such as extreme high
temperature (or low temperature), high humidity, vibration, radiation, and
chemical corrosion during installation and use.
