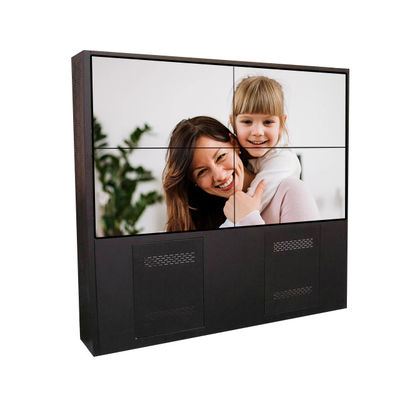

TV 500cd / M2 55 Inch 2k 1920*1080 LCD Video Wall Factory Supply HDMI Splitter Matrix Controller Complete Video System

TV 500cd / M2 55 Inch 2k 1920*1080 LCD Video Wall Factory Supply HDMI Splitter Matrix Controller Complete Video System

  • High Light

    1920*1080 LCD Video Wall

    ,

    Narrow LCD Video Wall

  • Panel Model
    LTI550HN11
  • Gap
    1.7mm
  • Resolution
    2k 1920*1080
  • Dimension
    1211.54*682.34*118.5mm
  • Function
    Single Display ; Full Screen Display
  • Part
    LCD Panel ; Splicer ; Control Software ; Bracket Ect.
  • Place of Origin
    Shenzhen China
  • Brand Name
    Genevision
  • Certification
    CE CCC FCC ROHS
  • Model Number
    MD550HN11
  • Minimum Order Quantity
    4pcs
  • Packaging Details
    Cartoon box first, Then wooden case package
  • Delivery Time
    5-8 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10000pcs/Month

TV 500cd / M2 55 Inch 2k 1920*1080 LCD Video Wall Factory Supply HDMI Splitter Matrix Controller Complete Video System

Supper Narrow LCD Splicing Screen 4K SAMSUNG 55 Inch 1.7 Bezel Make of Big TV HDMI Splitter Floor Stand Cabinet Brackets



Best Price+technology team+after service+1 year warrantly

1. Ultra-narrow stitching, only 1.7mm after bilateral stitching, basically achieving seamless display effect

2. Large size, using Samsung 55-inch LCD panel, larger size, less splicing required for the same display area

3. Continuing all the advantages of Samsung panel, stable technology, soft screen processing technology, etc.

4, white balance display effect is good, the efficiency of white display can reach more than 75%, plus the advantages of the frame, which makes it a good application in the field of high-end pursuit of the best display effects, such as conference room display, high-tech Exhibition hall, big data analysis center, etc.

5. Brightness (500cd / m2),

6. Light and dark contrast (5000: 1)

7, resolution 1920 * 1080, and can be superimposed display to achieve 4K display function

8. Support 365 days of continuous boot, 60,000 hours of light source

9. Support full screen display, single screen display, screen split display, splicing display, overlay roaming, and any combination display

10. Abundant interfaces, including HDMI, VGA, DVI, VIDEO, RS232 and network ports, etc.

11, can be wall-mounted, TV wall, front maintenance, branch wall and other installations

LCD panel specification:



Product
46 inch
49 inch
55 inch
Splicing Gap
0.88/ 1.7/ 1.8/ 3.5/ 5.5/ 8 mm
Resolution
1920*1080
1920*1080
1920*1080
Brightness
500cd/m²
700cd/m²
500cd/m²
Ratio
3500:1
3500:1
3500:1
Weight
21.5 KG
23.6 KG
28.5 KG
Lifespan
60000 H
60000 H
60000 H
Working Temperature
0 ~ 60 ℃
0 ~ 60 ℃



0 ~ 60 ℃
Power Supply
100 ~ 240V, 50 / 60 Hz
100 ~ 240V, 50 / 60 Hz
100 ~ 240V, 50 / 60 Hz
Rated power consumption
210W ( MAX : 300W )
210W ( MAX : 300W )
210W ( MAX : 300W )
Working hour
7 * 24 H
7 * 24 H
7 * 24 H
Installation
wall mounted type/ cabinet type/ floor standing
Input interface
VGA*1, HDMI*1, DVI*1, BNC*2, IPS*1, RS232*1
Optional
matrix, video processor, video distributor
Operation
RS232 centralized control internet remote control
TV wall resolution



1920*1080, 3840*2160, point to point display
