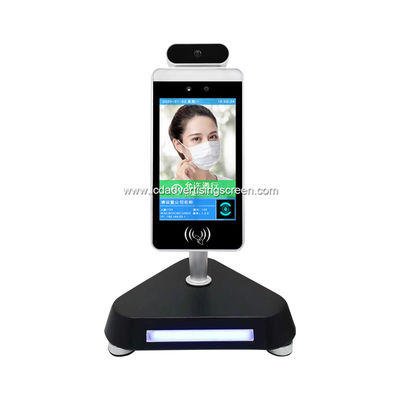

Desk Mounted F2.4 Aperture Face Recognition Infrared Thermometer
-
High Light
F2.4 Aperture Face Recognition Infrared Thermometer
,800×1280 Face Recognition Infrared Thermometer
-
CameraBinocular Wide Dynamic Camera
-
ApertureF2.4
-
Focusing Distance50-150cm
-
White BalanceAuto
-
Photo Flood LightLED And IR Dual Photo Flood Light
-
Size8.0 Inch IPS LCD Screen
-
Resolution800×1280
-
TouchNot Supported (optional Support)
-
CPURK3288 Quad-core (optional RK3399 Six-core, MSM8953 Eight-core)
-
StorageEMMC 8G
-
Network ModuleEthernet And Wireless (WIFI)
-
Audio2.5W / 4R Speakers
-
USB1 USB OTG, 1 USB HOST Standard A Port
-
Serial Communication1 RS232 Serial Port
-
Relay Output1 Door Open Signal Output
-
WiegandOne Wiegand 26/34 Output, One Wiegand 26/34 Input
-
Upgrade ButtonSupport Uboot Upgrade Button
-
Wired Network1 RJ45 Ethernet Socket
-
Credit Card ReaderNone (optional IC Card Reader, ID Card, ID Card)
-
Face Detection SSupports Detection And Tracking Of Multiple People At The Same Time
-
Face LibraryUp To 30,000
-
1 N Face RecognitionSupport
-
1 1 Face ComparisonSupport
-
Place of OriginCHINA
-
Brand NameGenevision
-
Model NumberMG-080
-
Minimum Order Quantity1 PCS
-
Packaging DetailsStandard export package
-
Delivery Time3days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000PCS/Month
Desk Mounted F2.4 Aperture Face Recognition Infrared Thermometer
Wall Mounted Infrared Sensor Face Recognition AI Detector Wireless Monitor
Quick points:
Wireless door face recognition desk mounted floor standing machine.Face recognition with
sensor gate system.Door access for stations,office.When you stay in front of the face sensor
for only seconds,you can find your temperature data and face recognition.
Door sensor lock face detective face recognition desktop floor standing.
What does the face recognition machine specification?
| Model | MG-08D | ||||
| Camera | Resolution | 200W pixel | |||
| Type | Binocular wide dynamic camera | ||||
| Focusing distance | 50-150cm | ||||
| White balance | automatic | ||||
| Screen | Size | 8.0inch IPS LCD | |||
| Resolution | 800×1280 | ||||
| Processor | CPU | RK3288 Quad core /RK3399 six core /MSM8953 eight core | |||
| Parts | Memory | EMMC 8G | |||
| Fill light | LED and Infrared double fill light | ||||
| Interface | Network module | Supports Ethernet,wireless(WIFI) | |||
| Audio | Support 2.5W/4R speaker | ||||
| USB port | 1 road USB OTG,１ road USB HOST standard A port | ||||
| Serial | 1 road RS232 Serial port | ||||
| Function | Relay output | 1 door open signal output | |||
| Wiegand interface | One Wiegand 26/34 output, one Wiegand 26/34 input | ||||
| Upgrade button | Support Uboot upgrade button | ||||
| Wired network | 1 RJ45 Ethernet socket | ||||
| Face Detection | Supports detection and tracking of multiple people at the same time | ||||
| Face library support | Up to 30,000 | ||||
| 1: N face recognition | Support | ||||
| 1: 1 face comparison | Support | ||||
| Stranger detection | Support | ||||
| Identify distance | Support | ||||
| UI interface configuration | Support | ||||
| Remote device upgrade | Support | ||||
| Device interface | Interfaces include device management, personnel / photo management, record query, etc. | ||||
| Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | ||||
| Infrared thermal imaging module | Human temperature detection | Support | |||
| Temperature detection distance | 1 Meter | ||||
| Temperature measurement accuracy | ≤ ±0.2℃ | ||||
| Temperature measurement range | 10℃~42℃ | ||||
| Thermal Field of View | 32 X 32 ℃ | ||||
| Visitors' temperature is normal and released directly | Support | ||||
| Body temperature over temperature alarm | Support (body temperature alarm value can be set) | ||||
| General parameters | Protection class | IP65, certain outdoor dustproof and waterproof function | |||
| Power | DC12V(±10%) | ||||
| Operating temperature | ﹣10℃~60℃ | ||||
| Storage temperature | -20℃~60℃ | ||||
| Power consumption | 13.5W(Max) | ||||
| Installation method | Gate bracket installation | ||||
| Equipment size | 238.24*128*25(mm) | ||||
| Weight | 1.45kg | ||||
Care and Maintenance
1. During the installation and use of the product, all electrical safety
regulations must be strictly observed.
2. Please use the power adapter provided by the regular manufacturer.
For specific requirements of the power adapter, see the product parame-
ter table.
3. When installing on the gate, please make sure that the product is
installed firmly.
4. If the product does not work properly, please contact the after-sales
service personnel. Do not disassemble or modify the product in any way.
(The company does not assume any responsibility for problems caused by
unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed
outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all
passwords and other related product security settings, and keeping your
username and password properly.
7. If the equipment does not work properly, please do not disassemble it
for repair, otherwise it will affect the equipment warranty.
8. Avoid extreme or extreme environments such as extreme high
temperature (or low temperature), high humidity, vibration, radiation, and
chemical corrosion during installation and use.
What does face detective door facial detector for?
It can be used with access gates and attendance for communi-
ties, office buildings, schools, hotels, scenic spots, transporta-
tion hubs and other public service places.
Installation method (take SW-1081D as an example)
① Mark the 4 fixing holes of the wall mount bracket on the
pre-installed wall.
Drill the holes and fix the plastic expansion bolts in the position-
ing holes on the wall at one time.
Note: The wall-mounted fixing plate is recommended to be 1.35
meters from the ground.
② Fix the wall mount bracket on the wall with 4 countersunk
head tapping screws.
③ Fix the module on the hook of the wall mount bracket, and fix
the lower hole of the device with the combination screw below.
Care and Maintenance
1. During the installation and use of the product, all electrical safety
regulations must be strictly observed.
2. Please use the power adapter provided by the regular manufacturer.
For specific requirements of the power adapter, see the product parame-
ter table
3. When installing on the gate, please make sure that the product is
installed firmly.
4. If the product does not work properly, please contact the after-sales
service personnel. Do not disassemble or modify the product in any way.
(The company does not assume any responsibility for problems caused by
unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed
outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all
passwords and other related product security settings, and keeping your
username and password properly.
7. If the equipment does not work properly, please do not disassemble it
for repair, otherwise it will affect the equipment warranty.
8. Avoid extreme or extreme environments such as extreme high
temperature (or low temperature), high humidity, vibration, radiation, and
chemical corrosion during installation and use.
Details:
Face detector and sensor facial system for statcions:
