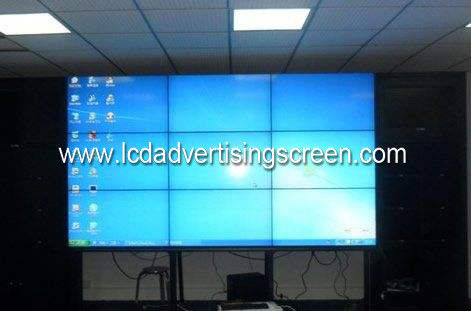

Indoor Samsung Lcd Video Wall 65'' Ultra Narrow Bezel Size Wall Mounted Metal Case
Features:
1. The splicing unit adopts a unique OPS modular design, which is convenient for after-sale inspection and maintenance.
2. Ultra HD resolution, single screen can support 3840 * 2160 4K HD picture.
3. Support a variety of signal interfaces to meet user needs for different input signals: DP * 1, HDMI * 1, DVI * 1, VGA * 1, RS232 * 3, USB * 1, AV * 1
4, 7x24 hours of continuous continuous work, life up to 60,000 hours.
5, using professional color calibration technology, through this technology, in addition to color calibration for still pictures, dynamic color calibration can also be performed to ensure the accuracy and stability of the picture output.
6. The intelligent temperature control system adopts a dual fan design to ensure that the internal temperature is within 55 degrees, making it safer to use.
7, de-interlacing processing technology to eliminate flicker; de-interlacing algorithm to eliminate "aliasing"; dynamic interpolation compensation, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling, etc. International leading technology processing.
8. Supports multi-language menu operating systems in Chinese and English, and a human-friendly human-machine interaction interface to meet the needs of different customers.
9. Industrial-grade panel, splicing can be combined arbitrarily (MXN), the maximum support for 15X15 unit splicing, input signal line by line, can be accurate to 1 pixel segmentation control.
| Model | ||
|
LCD Panel SPEC |
Size | 65" |
| LCDPanel Brand | SAMSUNG | |
| Panel Model | LTD650HC01 | |
| Panel type | TFT-LED | |
| Resolution | 3840 x 2160 | |
| Connecting Cracks | 3.5mm | |
| Brightnees (typ)/(min) | 700 cd/㎡ (typ.) | |
| Contrast(typ) | 4000 : 1 (Typ.) | |
| Response Time | 8ms (typ.) | |
| Pixel Pitch | 0.372(H) mm x 0.372 (V) mm | |
| Visual angle |
Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.) |
|
| Life(typ) | 50,000 hrs (min.) | |
| Colour saturation(x% NTSC) | 0.72 | |
| Colour | 8bit, 16.7 Million colors | |
|
I/O Interface |
USB | *1 USB2.0 |
| Displayport | *1 3840*2160 Maximum resolution 3840*2160 | |
| HDMI | *1 HDMI 2.0 compatible with HDMI 2.0 and downward | |
| DVI | *1 3840*2160 Maximum resolution 3840*2160 | |
| VGA | *1 | |
| AV | *1 | |
| RS232 | *3 | |
|
Video Feature |
Display mode |
Normal, Soft, Users, Dynamic |
|
3D digital comb filter, 3D image noise reduction, 3D motion adaptive comb filter, etc |
||
| OSD Language | En / /Etc.Multilanguage Optional | |
| Power | Input Voltage | AC100 V ~ 240 V, 50-60 Hz |
|
Power consumption(Watt) |
≤300W | |
| Standby (Watt) | ≤1W | |
| Environmental | Working temperature (dC) | 0℃～40℃ |
| Storage temperature(dC) | -20℃～55℃ | |
| Storage humidity | 10%～90% RH Non-Condensing | |
| Working humidity | 20%～80% RH Non-Condensing | |
| Other | Fan | 80*80mm |
| (AC)Power Input | *1 | |
| Power I/O | *1 | |
|
Structure |
Net weight | TBD Kg |
| Groos weight(Carton/wooden case) | TBD Kg(Carton) | |
| (WxHxD) outline dimension | 1432.58*807.62(MM) | |
| (WxHxD)Packing size (carton/wooden case) | ||
| Shell material | (NCT) Metal | |
| Shell color | Black | |
| accessory | Power Cord (1.5M) * 1; Certificate * 1; Instruction Manual * 1; Warranty Card * 1 | |
| Remark | 1. Many of the above detailed specifications are optional functions and are for reference only. The final interpretation right belongs to our company. The optional functions will increase the corresponding cost. Please select the relevant functional parameters as required. The final confirmation parameters are confirmed by the business personnel as quasi. | |
Our products are sold all over the world, you can rest assured.
