High Light
lcd splicing screen
,samsung video wall
-
Panel Size40inch
-
Resolution1920*1080
-
Bezel Size8mm
-
Panel BrandSamsung
-
SignalHDMI DVI VGA BNC
-
InstallFloor Stand ; Wall Mounted
-
Place of OriginShenzhen China
-
Brand NameGenevision
-
CertificationCCC CE FCC ROHS
-
Model NumberMD-400
-
Minimum Order Quantity1pcs
-
Price$300-$400
-
Packaging DetailsCartoon box first, then wooden case package
-
Delivery Time5-8 working days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability10000pcs/ Month

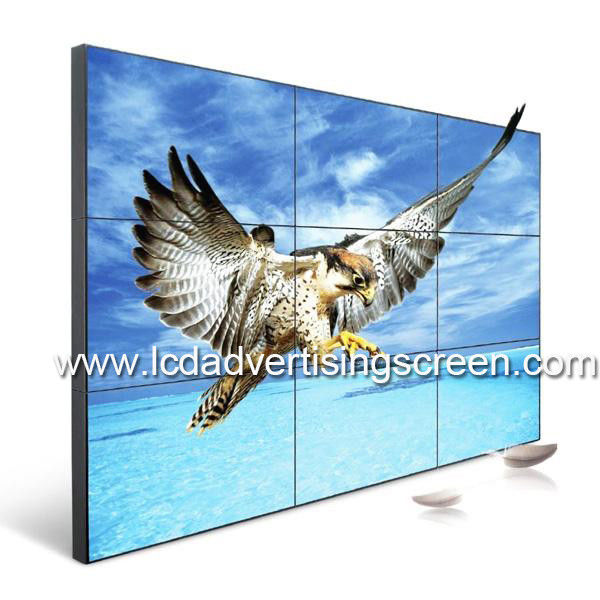

40 Inch Lcd Video Wall HD 3x2 Multi Screen Controller 4k Processor
40 Inch Lcd Video Wall HD 3x2 Multi Screen Controller 4k Processor
| 40-inch LCD splicing unit-technical parameters | ||
| product features |
Industrial design, 50,000 hours of uninterrupted work, stable performance High resolution, high contrast, ultra wide viewing angle Ultra-narrow side design, bilateral stitching is only 20mm Built-in stitching controller can realize image stitching display function 3D digital image processing core for precise monitoring of more details Image signal gain function, more stable and correct image control, real image restoration, improve system reliability Complete signal interface, support CVBS (BNC), HDMI, VGA, DVI input Support computer centralized control, can adjust the parameters of the splicing unit through the computer Automatic intelligent temperature control system, energy saving and environmental protection, make the splicing unit have higher stability and reliability Full metal housing, anti-static, anti-magnetic field, strong electric field interference Standard cabinet installation structure, standardized and modular for fast splicing installation |
|
| Detailed technical parameters | ||
| LCD panel | Model | 40”LED |
| Physical resolution | 1920×1080(H×V) | |
| Pixel pitch | 0.14825×0.44475 (mm) | |
| brightness | 400 (cd/ m) | |
| Contrast | 3000:1 | |
| Response time | 8ms | |
| Display color | 16.7M | |
| Perspective | 178°(H) / 178°(V) | |
| image | screen ratio | 16:9 |
| Picture quality compensation technology | LTI,CTI | |
| Motion compensation technology | AUTO MOVE | |
| filter | 3D Comb filtering, digital noise reduction | |
| Video format | PAL,NTSC | |
| Signal source | Composite video input | CVBS(BNC) ×1； |
| Composite video output | CVBS(BNC) ×1 ； | |
| Digital signal input | HDMI×1； 1920x1080@60Hz Backward compatible | |
| Computer signal input | VGA(DB-15) ×1；1920x1080@60Hz Backward compatible | |
| Digital signal input | DVI(DVI-I)×1；1080P(1920×1080) Backward compatible | |
| Built-in splicing controller | Computer centralized control interface | RS232 |
| Features | Arbitrary signal splicing display, full-screen splicing display, single-screen independent display, partial splicing display, DVI / CVBS loop-through display (copy), any signal roaming, zooming, and blanking | |
| system | Automatic temperature control system | Automatically control the fan operation according to the set operating temperature and actual machine temperature, reduce noise, save energy consumption, and improve the stability and reliability of the LCD splicing unit |
| Image signal gain | More stable and correct image control, realizing image restoration and improving system reliability | |
| Operation method | Computer centralized control | |
| Bus control | IC | |
| (MTBF) | 50000 hours | |
| power supply | Wide voltage design | 100~240V |
| Power consumption | 185W | |
| structure | Border size | up:.11mm; down:11mm; left:11mm; right:11mm |
| Dimensions | 873.3mm×501.6mm×115mm(W×H×L) | |
| Display area size | 853.9mm×480.3mm (W×H) | |
| Installation hole position | 400×200(mm)(L×W) | |
| Housing material | Full metal case, anti-static, anti-magnetic field, strong electric field interference | |
| Installation method | Standard cabinet, custom cabinet | |
| weight | Gross weight of the whole machine | Arround 21Kg(with package) |
| Machine net weight | Arround 18Kg | |
| Environment | storage temperature | -20℃~65℃ |
| Operating temperature | 0℃~55℃ | |
| working temperature | 10%~90% | |
| Quality | Quality Assurance | Compulsory certification of Chinese electrical products (3C) |
| Environmental standards | All components and packaging materials meet international environmental standards | |
