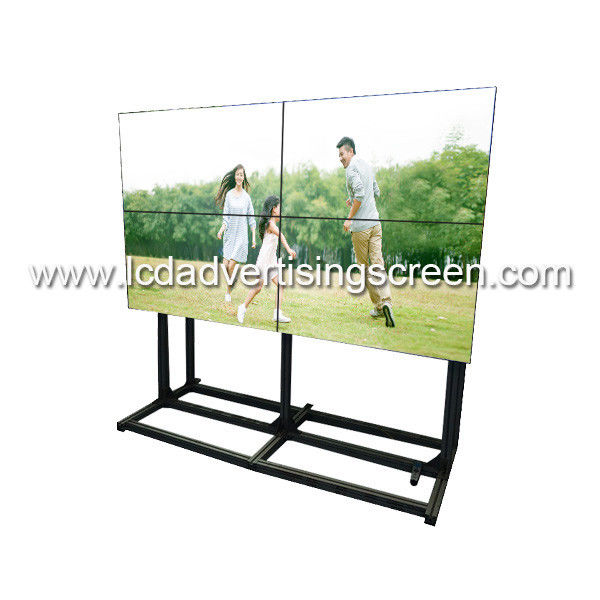

3x3 Lcd Video Wall Player 43'' Samsung 1920*1080 HDMI 450cd/㎡ Interactive
43 inch 8mm splicing LCD splicing screen / TV splicing wall monitoring display large screen monitor monitoring splicing screen video conference display product details
[I. Product Features]
1. High-definition resolution (1920 * 1080P), fine picture quality and saturated colors;
2. Intelligent split screen, which adopts extension technology to intelligently split the screen display, any combination, as you like;
3. 3D noise reduction filtering technology, based on the original frame noise reduction, added frame-to-frame noise reduction function;
4, 178 ° wide angle of view, to ensure that the image viewed in the 178 ° angle of view is not deformed, and the color is not distorted;
5. Simulated delivery, the picture can be transmitted to the upper area of the splicing screen through the signal source on mobile devices such as mobile phones and computers for display on the wall of the screen;
6, the body is made of metal, anti-magnetic field, anti-interference, anti-radiation, static electricity;
7. Silent cooling fan design, long machine life.
[Two, product parameters]
1. Product model: JC-XVK-APJP4308LL;
2. Screen size: 43-inch LED;
3. Resolution: 1920X1080P;
4. Screen aspect ratio: 16: 9;
5. Brightness: 500cd / m2;
6. Contrast: 4000: 1;
7. Viewing angle: 178 °;
8. Response time: 5ms;
9. Color: 1.07G (10bit);
10. Refresh rate: 60Hz;
11. Video input (AV): BNC × 2;
12. Video loop-out (AV): BNC × 2;
13. VGA signal input: VGA × 1;
14. DVI digital signal input: DVI × 1;
15. HDMI signal input: HDMI × 1;
16. DP signal input: None;
17. RS-232 control input: RJ45 × 1;
18. USB: USB × 1;
19. RS-232 control loop-out: RJ45 × 2;
20. Debug + IR (for program upgrade and external remote control receiver): RJ45 × 1
21. Open window roaming: 1 sub-picture roaming;
22. Working temperature: 0 ℃ ~ 50 ℃;
23. Storage temperature: -20 ℃ ~ 60 ℃;
24. Working humidity: 5% ~ 90%;
25. Storage humidity: 5% ~ 90%;
26. Reliability: 60,000 hours;
27. Power supply: 100V ~ 240V AC;
28. Working power consumption: 80W;
29. Standby power consumption: ≤3W;
30. Unit size (mm): 936.3 * 538.1 * 89.2;
31. Display area: 930 * 523mm;
32. Patch size (mm): 8mm on both sides;
33. Net weight: about 12kg;
34. Environmental standards: All components and packaging materials meet international environmental standards;
35. Installation method: cabinet type, recessed wall type, bracket type;
36. Appearance color: black;
37. Shell material: sheet metal;
38. Operation mode: RS232 serial port control;
39. Operation mode: 16 kinds.
[III. Application areas]
Suitable for security monitoring, bars / KTV, banks, corporate production scheduling, hospitals, commercial buildings, real estate marketing centers, etc.
