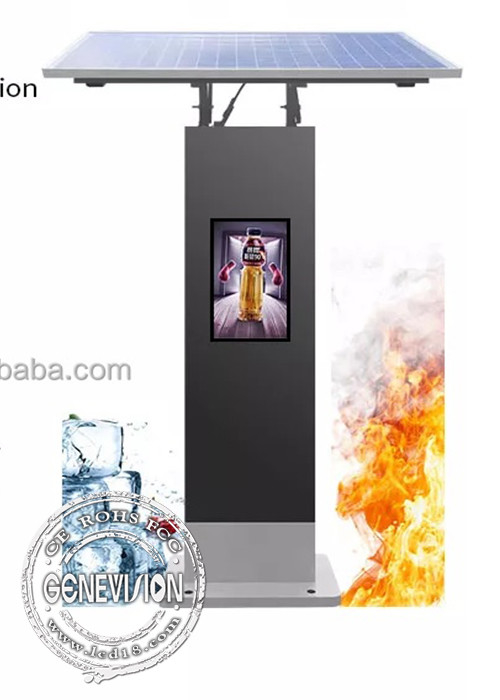

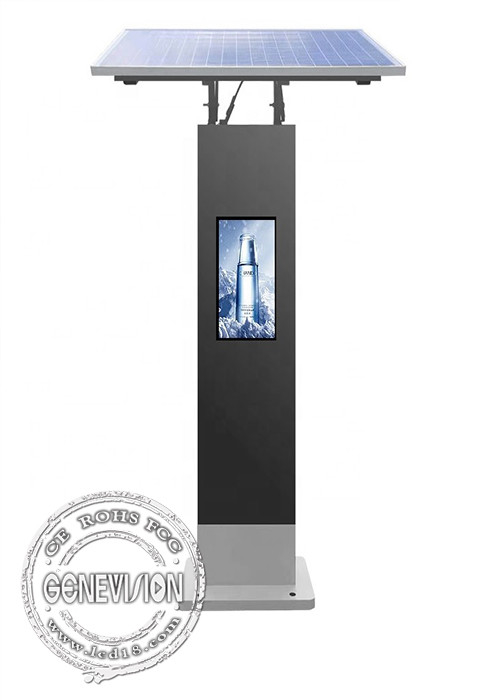

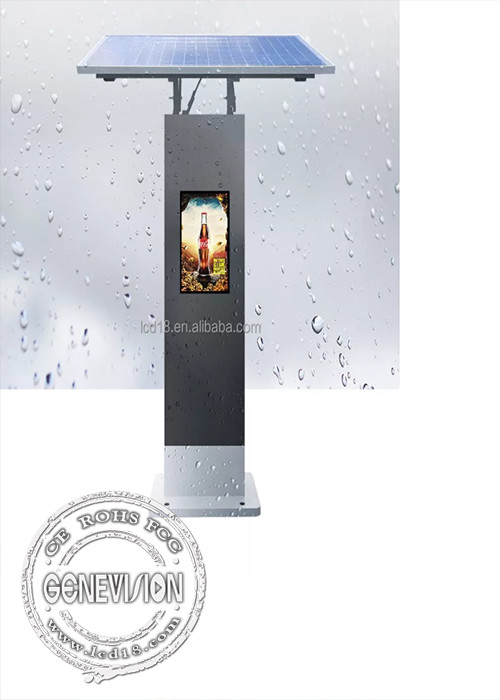

32inch IP65 Solar Power Outdoor Advertising Display Light Box Digital Signage
32inch Solar Power Advertising Display Outdoor Light Box Digital Signage
3. Outdoor floor standing vertical display
1. Solar Charge Controller.
2. Solar Battery.
good deep cycling capability, good overcharge and over discharge capacity.
long life, a special process design and gel electrolyte to ensure a long-life battery.
application of different environments, such as under different conditions of high altitude, high temperature, etc. can be used normally.
3. Waterproof Cabinet design
The shell is made of 1.5mm galvanized steel plate;
Surface printed by outdoor powder,Shell’s color can be customized according to customer demand;
The life span of shell is over 7 years;
4. Vandaproof Glass:
6mm double sided laminated glass, coated with AR anti glare;
Its characteristics as high permeability Light, low reflection, vanda-proof;
Prevent 99.99% UV, prevent 52% solarradiation Radiation heat;
Light transmission:over 97%, the reflectivity :less than 3%
5. Industry Monitor:
Industrial grade special display;
LED backlight brightness:1500cd/m2;
Resolution :1920*1080;
Industrial grade power supply,
With automatic photosensitive probe, it can adjust the light brightness according to the environmental.
6. Play System
Embedded network information release system;
Support picture, video ,text format;
Support cable network transmission;
Supporting offlined documents issued to play;
Server management software;
7. Electric control system
The totally power supplier control circuit breaker;
The timer can be segmented timing control;
Automatic switch machine;
8. Cooling system
Using intelligent straight wind temperature control;
Work smoothly in -20-45 degree environment ;
Automatic temperature, ensure the machine internal temperature in the 5-25range;
Ensure that the direct sunlight without blackening liquid crystal screen;
Filter system with high precision.
Specification of Solar Power Advertising Display
Active Display Area | 597.888 (W) × 336.312 (H) mm (A.A) | |||
Max. Resolution | 1920*1080 | |||
Contrast Ratio | 1000:1 | |||
Aspect Ratio | 16:9 | |||
Brightness | 2000cd/m2,has brightness sensor, auto-adjustment as per different daylight to lower power consumption | |||
Waterproof Level | IP65 | |||
Color Components | 16.7M | |||
Visual Angle | 89/89/89/89 | |||
Dot Pitch | 0.1038×0.3114 mm | |||
screen | No touch | |||
Responsive Time | 8ms | |||
Panel Life | above 50000 hours | |||
Dimention of machine | about 2.5m height | |||
turn on/off timer | built in | |||
Cooling system | Air-cooling fan built-in, with patent fully intelligent temprature control technology | |||
Led lighting | With | |||
Solar panel system | On the top of outdoor kiosk digital signage | |||
Electronic part | Electricity leaking protection, lightning protection | |||
Power Supply | AC 110V~240V,50/60HZ, | |||
Wooden box dimension | 227x86x92cm(233kgs) for individual unit | |||
Solar power battery | 12V, 55AH | |||
Power Consumption | 50.4/53.7W (Typ./Max.), Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||
Image Formats | JPEG,PNG,BMP,GIF | |||
Video Format | AVI,MP4,WMV,MPEG2,MPEG1 | |||
Audio format | MP3,WAV,WMA | |||
Shell Material | SPCC,Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||
Shell Color | White | |||
Speaker | built-in speaker*2 x10w | |||
Normal Working Temperature | -40 to 60 Celsius degree |
- Market, Hotel, Parking area, Zoo, Park
- Public places: Airport, Underground, Bus stops, Exhibitions, Square and Building
- Healthcare: Hosptals, Pharmacies
- Entertainments: Theater, Fitness, Bars
- Education: University, Library
- Local Government & Organiztions
Monocrystalline silicon solar panel.
Photoelectric conversion efficiency of 24%, which is all kinds of solar panels in the highest photoelectric conversion efficiency. Since the general use of silicon tempered glass and waterproof resin package, so rugged, life in general up to 15 years.
It was used for outside place like bus station, in front of apartment, plaza, park, outside sports, stadium, in the shopping street to advertise.
