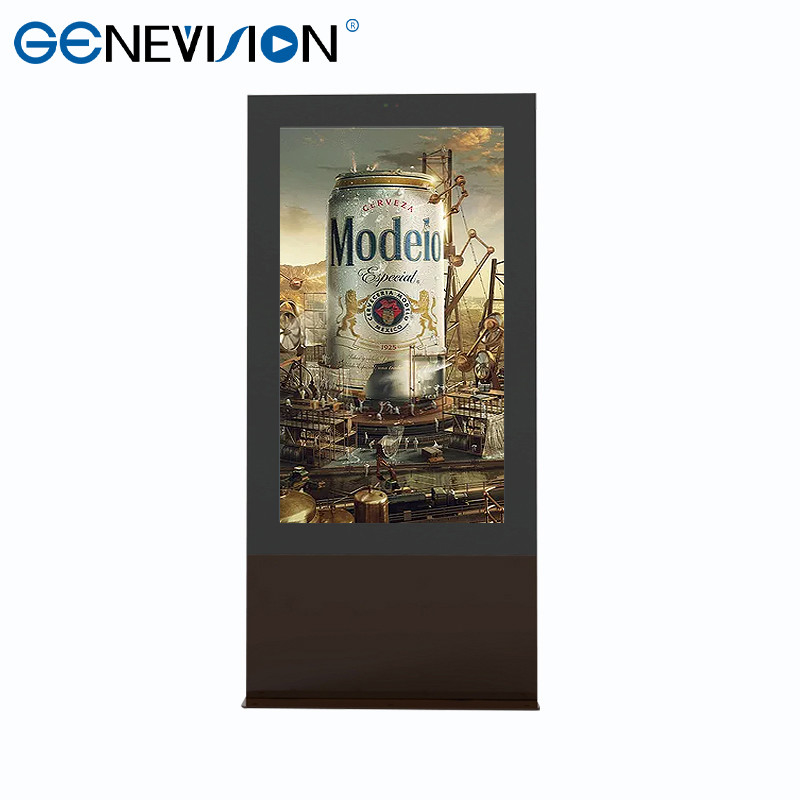

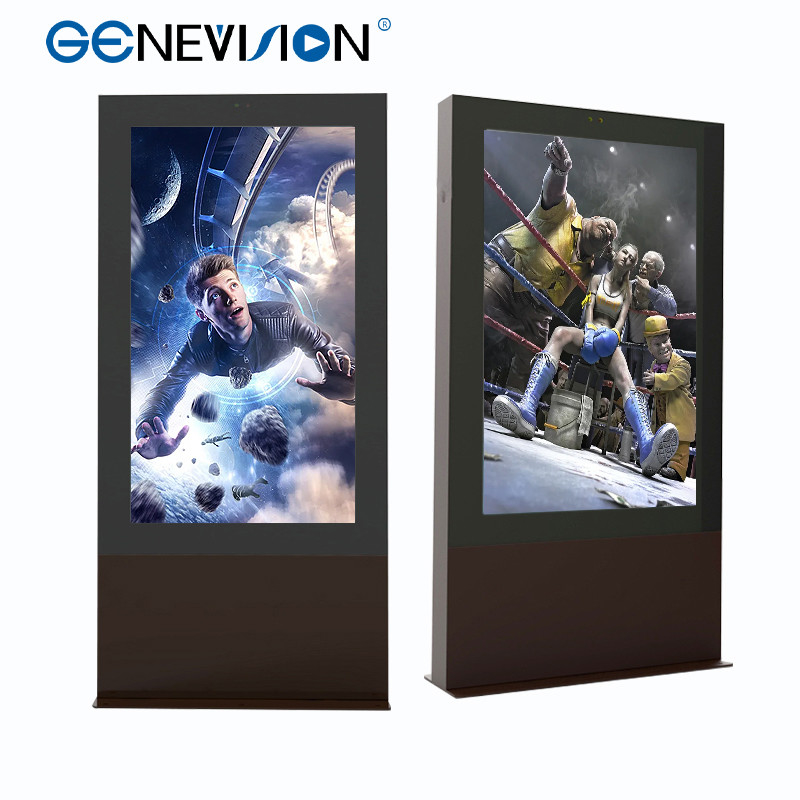

IP65 Outdoor Advertising Kiosk For Station Standing 65 Inch Screen

IP65 Outdoor Advertising Kiosk For Station Standing Kiosk 65 Inch Screen Supper Size

Quick detail:

1. Tempered glass outdoor screen in waterproof IP65 grade with 43,55,65 inches.

2. Advertising signage material in good protection appearance.

3. With android remote control software MIPS software in android 7.1

4. Advertising 24*7 hours in high temperature with fan cooling system or build in air conditioner.

5. High brightness 2500nits sunreadable in sensor light adjusting in boe grade one panel with lcd.

6. Quality warranty in 1 year support technique on line service spare parts replacement free.

Description of the outdoor signage:

1 Structure

1.1 The shell is made of 1.5mm galvanized steel plate, sprayed with outdoor special powder

1.2 The shell structure is designed with waterproof edge, which meets the IP65 protection level

1.3 The front protective glass of the whole screen adopts 5mm AR glass, and the light transmittance is >94%.

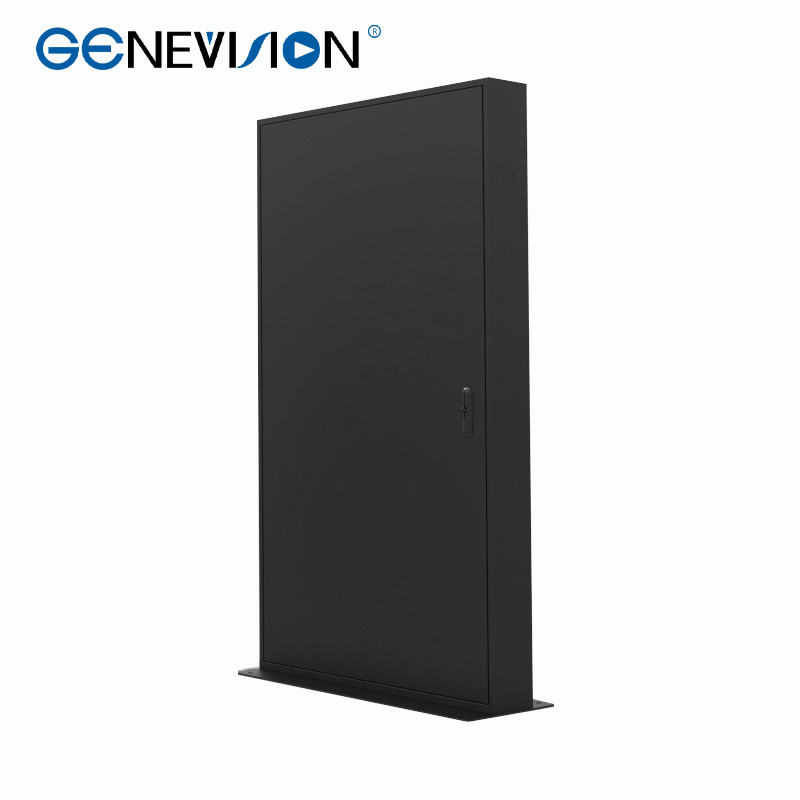

1.4 The whole machine adopts the rear door method.

1.5 The whole machine adopts modular design, which is convenient for installation and maintenance.

1.6 The bottom of the whole machine is designed with mounting holes for fixed ground installation.

2 display

2.1 Using a high-brightness 46-inch display, the brightness reaches 2000nit, and the design life is 50000H

2.2 The high-brightness display is clearly visible in sunlight, with a viewing angle of 178°.

2.3 The display screen is equipped with an automatic photosensitive system, which can change the brightness of the display screen according to the ambient light.

3 Heat dissipation

3.1 The air-conditioning cooling scheme is adopted, and the internal temperature control is realized by using the work of the compressor.

3.2 The internal air and external air of the whole machine are in an isolated state, and the internal air is circulated through the air conditioner to maintain the internal temperature control.

3.3 The start and stop of the air conditioner is automatically controlled according to the internal temperature. The default start temperature of the air conditioner is 38°C and the stop temperature is 30°C.

4 Electronics

4.1 The Android player is used for playback, which supports remote and local program management.

4.2 Adopt industrial grade switching power supply, stable and long life.

4.3 It has protection configurations such as leakage and lightning protection.
