High Light
Wall Mounted LCD Kiosk Digital Signage
,ROHS 55 Inch Outdoor LCD Monitor
,55 Inch Kiosk Digital Signage
-
Size55INCH
-
Display Area1209.6(H)×680.4(V) Mm
-
Brightness2000cd/m2
-
WaterproofBuilt-in IP65
-
MaterialWater Proof, Dust Proof And Explosion Proof Housing+6mm Tempered Glass
-
Cooling SystemFan Cooling Or Air Conditional Cooling
-
CPURK3288, A40, RK3399, RK3328, I3, I5, I7(optional)
-
OSAndroid/Windows Optional
-
ScreenCapacitive Touch, Infrared Touch, No Touch (optional)
-
InstallationStandard VESA Wall Mount
-
Place of OriginGuangdong, China
-
Brand NameGENEVISION
-
CertificationCCC,CE,FCC,ROHS
-
Model NumberMOG-550
-
Minimum Order Quantity1
-
PriceUSD1435/PC
-
Packaging DetailsWooden box cover carton box
-
Delivery Time10~25 days
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability2000pcs per month

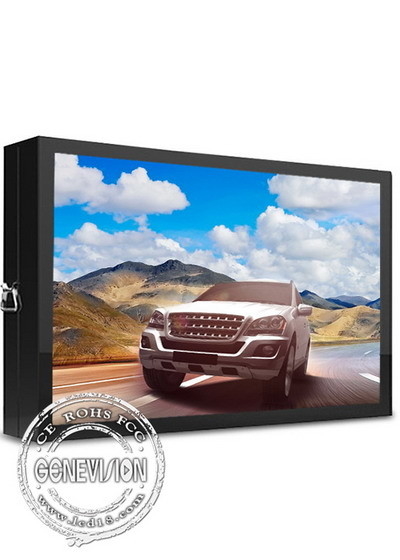

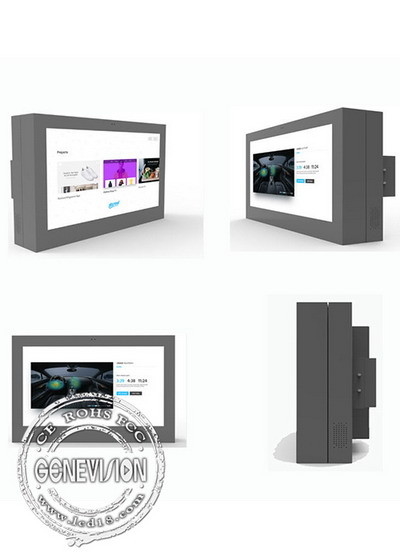

ROHS Wall Mounted 55 Inch Outdoor LCD Kiosk Digital Signage
55 inch outdoor lcd monitor wall mounted advertising kiosk digital signage and displays
Description details
| FC(Fan cooling) wall mounted and floor standing standard KIOSK Features: |
| 1. 22" -32" Backlit: 1500cd / m2; ≥42 inch Backlit: 2000CD / m2; ≥70" Backlit: 2500CD / m2. |
|
2. Glass: Anti-glare AR glass, use imported original film, AR anti-reflective T = 6.8MM, light transmittance 97%, reflectivity less than 3%, with sandwiched glue. |
| 3. Outdoor speakers: 8Ω 10W speakers. |
| 4. Industrial power supply, automatic adjustment of brightness, reduce power consumption. |
|
5. Humanized design: leakage protection switch + lightning protection device + time control switch (with leakage protection, lightning protection, can set multiple groups of time control). |
|
6. Scientific cooling: EBM centrifugal fan patented technology using intelligent temperature control system (with heating), to meet the LCD screen working well in the external environment -40 to 55 degrees. |
|
7. Outdoor professional chassis: galvanized steel plate + coated zinc powder + surface spray outdoor special powder (outdoor anti-corrosion up to 10 years) + waterproof tape. |
| 8. Professional outdoor test: IP65 waterproof test + high and low temperature test + simulated solar radiation test. |
|
AC(Air conditioning) wall mounted and floor standing KIOSK Features: |
| 1. 22" -32" Backlit: 1500cd / m2; ≥42 inch Backlit: 2000CD / m2; ≥70" Backlit: 2500CD / m2. |
|
2. Glass: Anti-glare AR glass, use imported original film, AR anti-reflective T = 6.8MM, light transmittance 97%, reflectivity less than 3%, with sandwiched glue. |
| 3. Outdoor speakers: 8Ω 10W speakers. |
| 4. Industrial power supply, automatic adjustment of brightness, reduce power consumption. |
|
5. Humanized design: leakage protection switch + lightning protection device + time control switch (with leakage protection, lightning protection, can set multiple groups of time control). |
|
6. Scientific cooling: intelligent industrial air conditioning patented technology All intelligent temperature control system (with heating), to meet the LCD screen in the external environment -40 to 55 degrees. |
|
7. Outdoor professional chassis: the use of galvanized steel + coated zinc powder base + surface spray for outdoor powder (outdoor anti-corrosion up to 10 years) + waterproof tape; |
| 8. Professional outdoor test: IP65 waterproof test + high and low temperature test + simulated solar radiation test. |
Specification
| Panel | Size | 55" |
| Aspect Ratio | 9:16 portrait | |
| Resolution | 3840(RGB)×2160 UHD 80PPI | |
| Brightness | 2000 cd/m² | |
| Contrast Ratio | 1200: 1 | |
| Viewing Angle | 178° horizontal / 178° vertical | |
| Display Area 1209.6(H)×680.4(V) mm | ||
| Video Interface | VGA HDMI | |
| Audio Interface | AUDIO IN | |
| Brightness Control | Automatic light sensing | |
| Parameters | Operating Temperature | -40°C to +55°C |
| Operating Humidity | 5%to100% | |
| Ingress protection rating | IP65 | |
| Power Supply | AC 108-115V,50/60Hz | |
| AC 208-240 V, 50/60 Hz | ||
| Power Consuption | 1.0 kW (mainly for AC starting) | |
| other | customized | support |
Application
This kind of products can be widely used in community, business streets, bus station, railway station, airport, building, supermarket and other outside sites.It is very usefull for playing advertisements,attractive customers.
Our products are sold all over the world, you can rest assured.
