Self Service FHD 32 43in Touch Screen Information Kiosk

Self Service FHD 32 43in Touch Screen Information Kiosk

  • High Light

    FHD Touch Screen Information Kiosk

    ,

    43in Touch Screen Information Kiosk

    ,

    FHD Self Service Kiosk

  • Product Name
    Self Service Kiosk
  • Material
    Metal Shell
  • Screen Size
    32inch
  • Camera
    5MP HD Camera
  • Thermal Printer
    80mm Fast Speed
  • Card Reader
    IC/ID Card
  • Scanner
    QR Code,Bar Code
  • NFC
    Support
  • Touch Screen
    10 Point Touch
  • Resolution
    FHD 1920*1080
  • Place of Origin
    CHINA(mainland )
  • Brand Name
    Genevision
  • Certification
    CE,ROHS, FCC
  • Model Number
    MAD-320
  • Minimum Order Quantity
    1 set
  • Price
    USD 500-800 Per set
  • Packaging Details
    Carton box for inner , Wooden box for outter packaging
  • Delivery Time
    10-15 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000 sets per month

Self Service FHD 32 43in Touch Screen Information Kiosk

            Self Service Payment Kiosk 32" 43" Self Checking Information Touch Screen Display



1. Description of self service touch screen kiosk



1. Floor standing vertical metal case shell

2. A grade IPS panel 32",BOE or LG brand lcd screen

3. come with capacitive touch screen,fast response

4. Inbuilt with thermal printer,support 80mm paper size

5. Inbuilt with 2D scanner,support both QR code,bar code and NFC payment

6. Inbuilt with HD camera,can be 5MP or 8MP,can adjust the angle and height

7. Support with IC/ID card reader

8. Colour:White or Black or other colour

9. OS:can be Android OS or Windows 10 OS or Linux OS

10. Logo printing,OEM,ODM are welcome





2. 32inch touch screeen display LCD Specifications:



Model PC Version Android Version
Screen Panel Brand Full New 100% A+ Grade Brand Panel
Panel size 32"
Display size 698mm (H) x 392m (V)
Display ratio 16:9
Resolution 1080*1920
Viewing angle 178°/178°(H/V)
Color 16.7M
Backlits LED
Brightness 350 cd/m2
Contrast 5000:1
OS System Standard:main board:G61 CPU:G620 CPU:RK3288 1.8GHZ Quad-core
RAM:KINSTON2GB Hard disk:128GB RAM:2G
Superior:main board:G61 CPU:I3 4050 ROM:8G
RAM: 4GB Hard disk:128GB
Operation Windows 10 Android 7.1(can be upgraded)
Connection to network RJ45, 3G, WIFI (optional) RJ45 ,3G,WIFI (optional)

Touch Screen

system



Touch screen

Infrared touch screen

(touch foil, capacitive)



Infrared touch screen

(touch foil, capacitive)



Touch ways finger,touch pen finger,touch pen
Touch dots 10 dots (optional)  10 dots
Durability More than 50 million touch More than 50 million touch
Power Power 140W 120W
Voltage AC100-240V 50/60HZ AC100-240V 50/60HZ
Stability good good
Instructions Interface VGA/hdm1/USB hdm1/USB/SD

Working

temperature

0°C-50°C 0°C-50°C
Material Aluminum alloy,tempered glass Aluminum alloy,tempered glass
Surface Spraying,frosted aluminum Spraying,frosted aluminum
Size Undetermined Undetermined
Wight Undetermined Undetermined
Body Shell Galvanized steel sheet. Thickness:1.0-1.5mm.
Color Black , white , silver or customized colors
Packing By carton with foam inside & woonden
Optional Functions Anti-dazzle
3G Capability for Information Kiosk
Human sensor
Fan, temperature and light sensor



3. Main features of self service touch screen kiosk



Genevision's self service kiosk are more and more popular in the public place.It widly use in restauant,hotels,bank,hospital,gas station,railway station,supermarket,fast food shop and so on.



Self Checking Information Kiosk come with touch screen,which is fast response and high quality.Have HD camera 5MP or 8MP on the top,support face recognition payment,can adjust angle and height for high and short people.Self Touch Screen Terminal also inbuilt with thermal printer for 80mm paper self cut,but also inbuilt with Scanner support scan goods's Bar code to check good's price then use Wechat or Alipay QR code payment.It also support NFC payment.After done payment,client can get the small receipt.



Also support customize space for POS terminal for credit card payment.



The self payment terminal machine can choose Android 7.1 OS or Win 10 OS to run your own software.If you don't have software,we also can provide self order self pay software for Android system terminal.

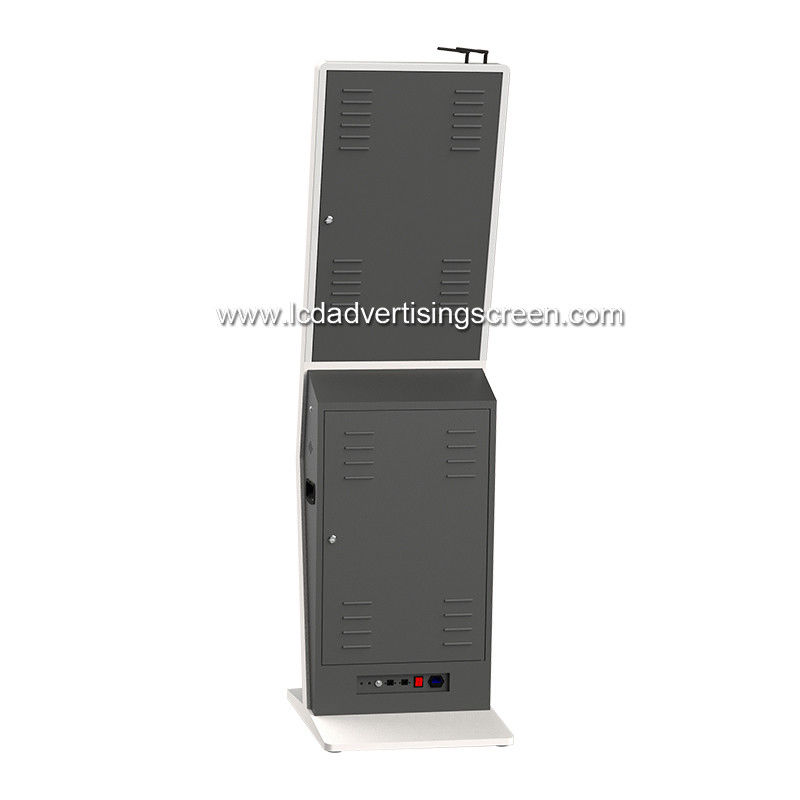

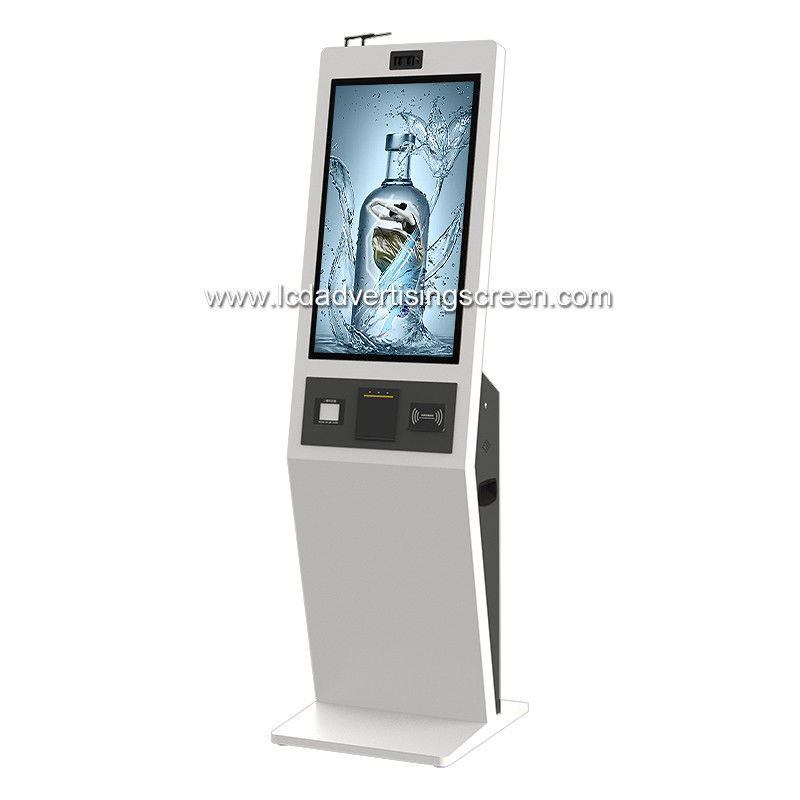

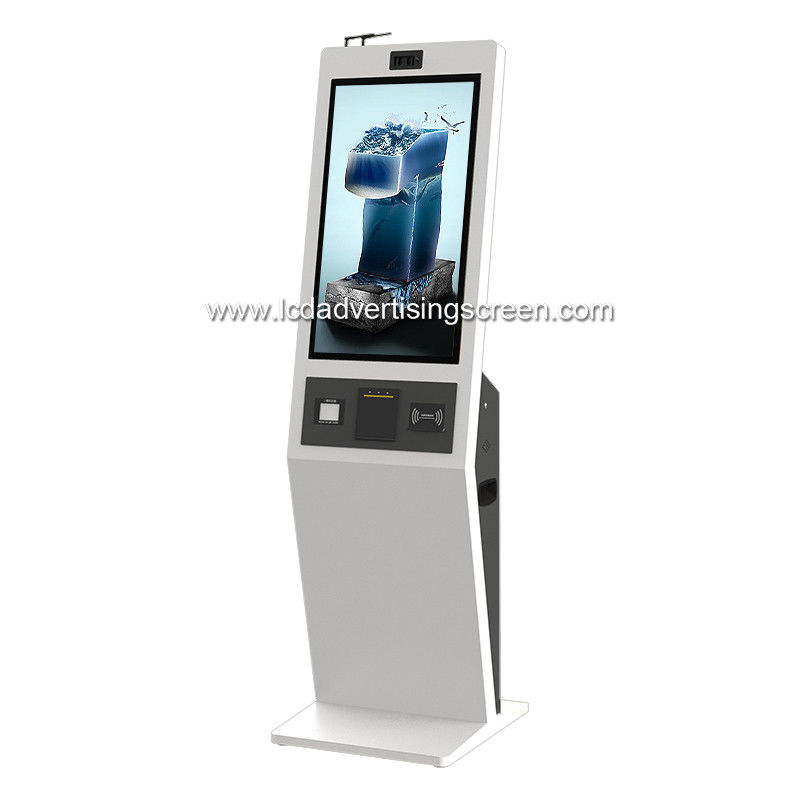

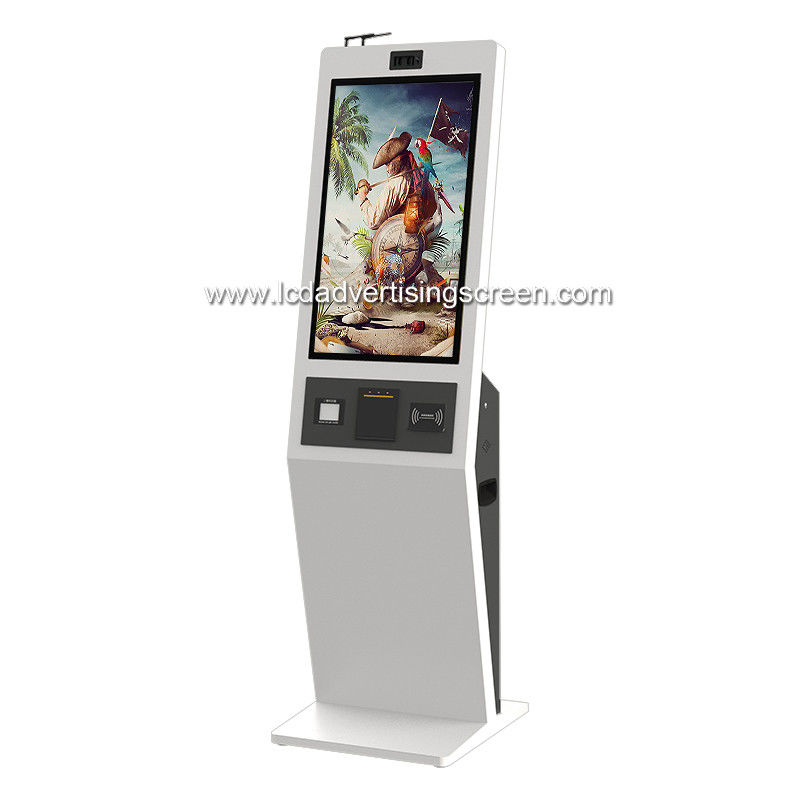

4. Picture show  of self checking information touch screen kiosk:



Self Service FHD 32 43in Touch Screen Information Kiosk 0Self Service FHD 32 43in Touch Screen Information Kiosk 1Self Service FHD 32 43in Touch Screen Information Kiosk 2



Question and Answers:
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer who has been in produce comprehensive products for Touch Screen Display for more than 16 years.


2.Q: What kind of product do you offer?
A: We offer LCD Advertising Screen,Floor Standing Digital Signage,Touch Screen Kiosk All in One PC,Self Service Payment Kiosk,Outdoor Advertising Display,LCD Video Wall Display,Mobile Phone Charger Kiosk etc....


3.Q: What is the advantage of your factory?
A: With 2000sqm of workshop, Professional engineers and skilled workers.


4.Q: What kind of certificates for products do you have?
A: We have CE, ROHS, FCC,RCM certificates for both European market and Amercan market.


5.Q: Do you accept customized design for product?
A: Yes, we are able to provide customized design for customers, logo can be printed on the product and BIOS logo can be shown on the screen when it powered on.


6.Q: What is the life span for product panel?
A: 50000 hours for the life span.


7.Q: How soon to delivery the product after place the order?
A: Usually 3 weeks for the lead time; we also have some best selling model in stock and that will be only 1 week for delivery.


8.Q: What is your warranty of your product?
A: We offer 1 years warranty for all products.
