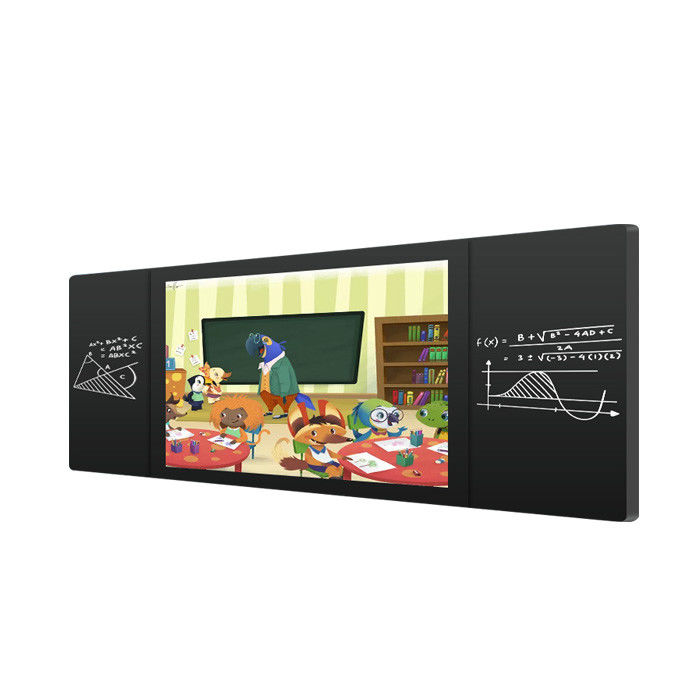

Wall Mounted Touch interactive whiteboard teachning lcd monitor
“Multimedia interactive teaching all-in-one machine" uses high-definition LCD screen as the display and operation platform, and integrates multiple technologies such as human-computer interaction, flat panel display, multimedia information processing and network transmission. It fully supports gesture touch operation, built-in resource library, and simulation experiment. With multiple functions such as writing, drawing, annotation, multimedia entertainment, and network conference, flexible annotation and strong interaction
Complete functions: The high-definition LCD screen is a display and operation platform, with functions such as writing, annotation, drawing, multimedia entertainment, and network meetings.
Leading technology: Incorporating multiple technologies such as human-computer interaction, flat panel display, multimedia information processing and network transmission, it is the preferred solution for office, teaching, and graphic interactive presentations in the information age.
High-definition picture quality: The screen color is displayed without loss, the color is soft and not irritating, and it will not cause visual fatigue when watching for a long time, which solves the problem of glare in front of the projector.
Strong interaction: full touch without blind spots, full interaction, cross-space transmission of audio, video, and screen writing content at the meeting site through the Internet, greatly achieving wonderful interaction in the process of meeting, teaching and training.
Energy saving: LED backlight effectively reduces the energy consumption of the screen body, and reduces the power consumption of the whole machine through optimized circuit design
Teaching Equipment Touch screen LCD whiteboard for classroom
1. Wall mounted install or floor standing option,
2. 55 inch ~ 100 inch LCD screen selected.
3. FHD LCD panel with high resolution, anti-glare glass layer on the screen surface to protect eyes.
4. Nano blackboard touch or IR touch screen. with teaching software.
5. Support Dual system, Android 5.1 and Windows 10. support display videos, pictures, sounds,TV PPT ect..
Display parameters | Backlight type | LED |
Screen resolution | 1920(H)×1080(V) | |
Screen size | 65'' 75'' 85'' 98'' | |
View angle | 165/165/150/150(L/R/U/D) | |
colour | 16.7 | |
brightness | 400cd/m2 | |
Contrast | 5000:1 | |
Response time | 4ms | |
Display area | 1430(H)×804mm(V) | |
Touch screen parameters | Identification principle | Infrared recognition |
Multi-touch | 6/10 dot touch | |
Light interference | Light heart can be used normally in various angles | |
Ways to write | Fingers, pens, opaque objects >5mm in diameter | |
Touch accuracy |
95% above touch area is ±2mm
|
|
communication method | full speed USB2.0/3.0 | |
Writing screen surface hardness | Physical tempering mode 7 explosion-proof | |
Touch screen life | 80000 More hours |
