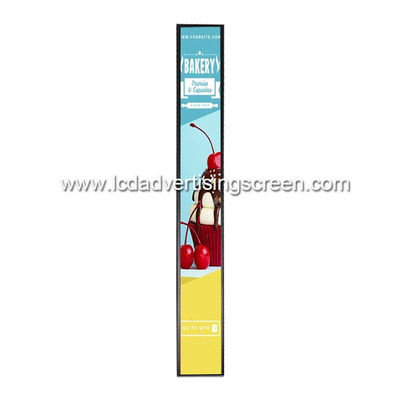

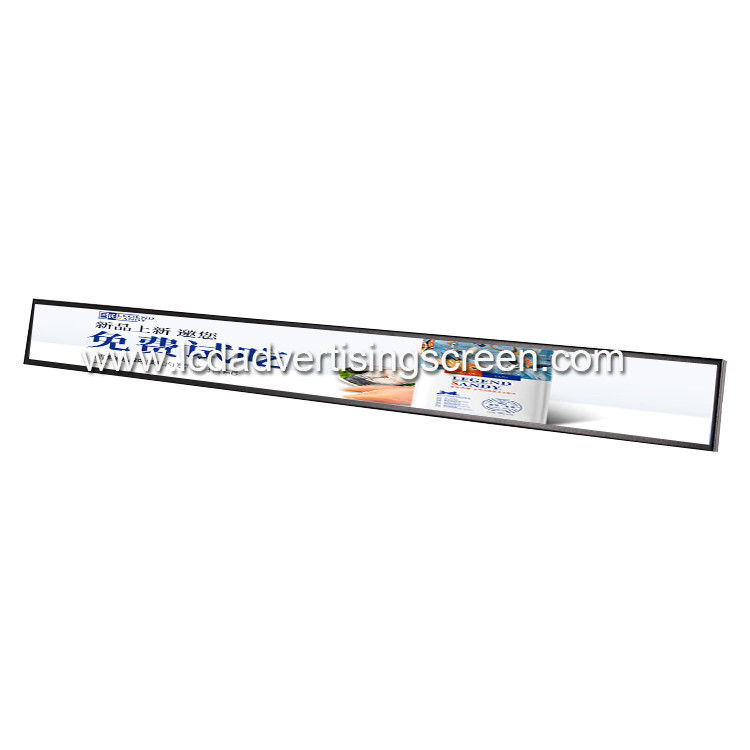

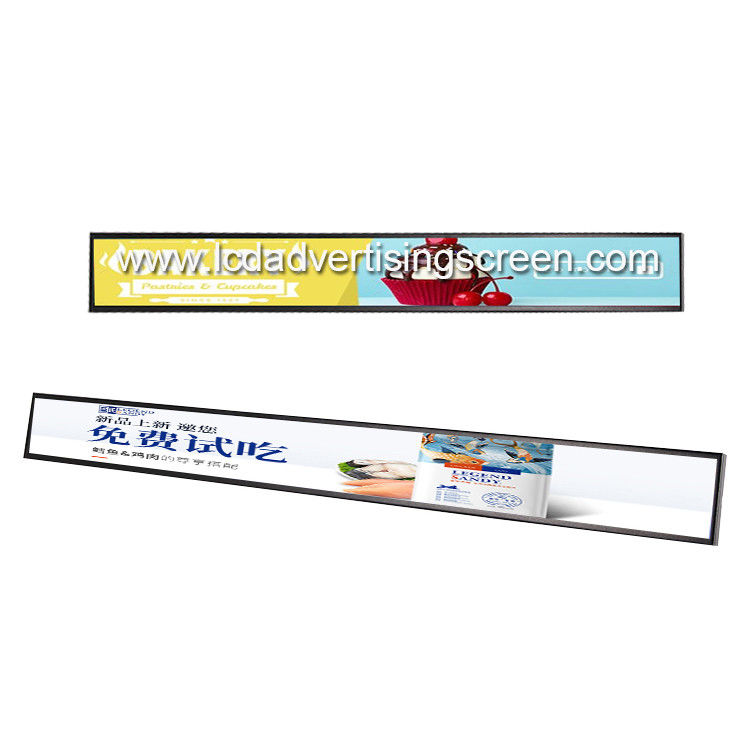

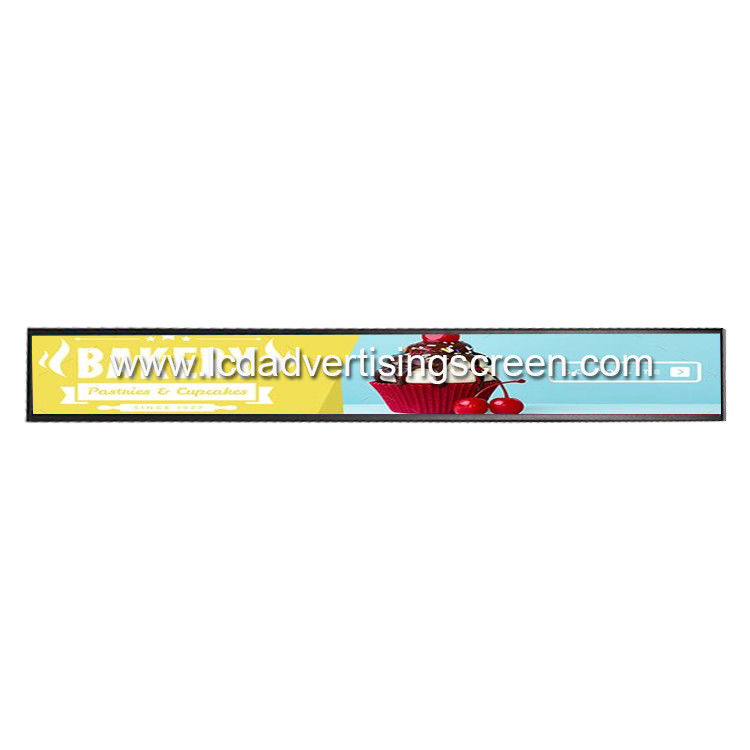

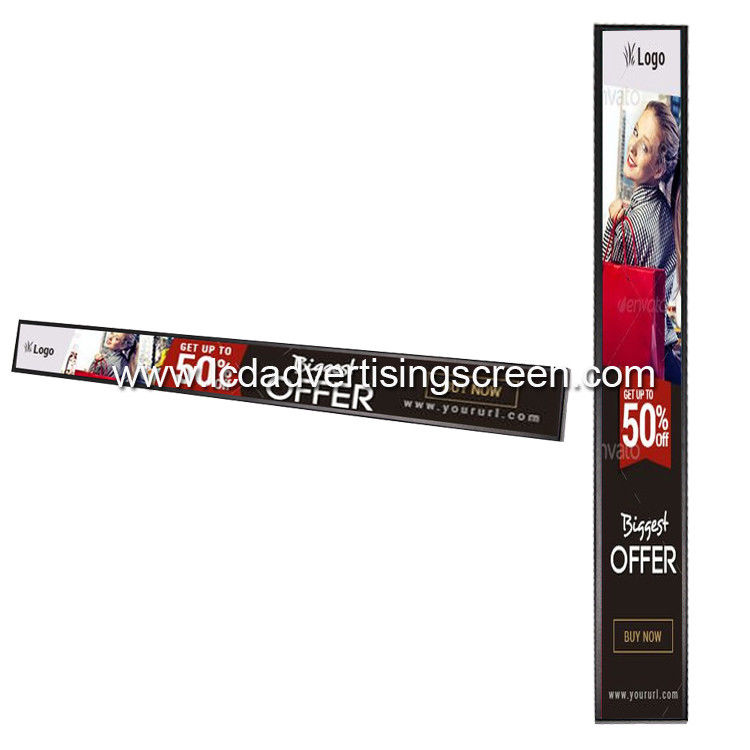

Ultra wide stretched bar lcd monitor digital signage advertising display android wifi with software
Main board Spec. | |
CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
RAM | 1G DDR3(1G/2G for optional(option) |
ROM | 8G EMMC(8G/16G/32G/64G EMMC for optionaloption) |
Memory extension | TF Card extension with the highest support for 64GB |
System | Android 8.1 |
Intetnet | Support 2.4G WIFI connection |
RTC real time clock | Support timing on / off function |
Interfaces | 1*micro USB(OTG) |
1*TF card, | |
1*Type-c(DC 12V input,Need to match with our company's special adapter for power supply) | |
machine specification | |
Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤20W |
Product size | 597*60*15mm |

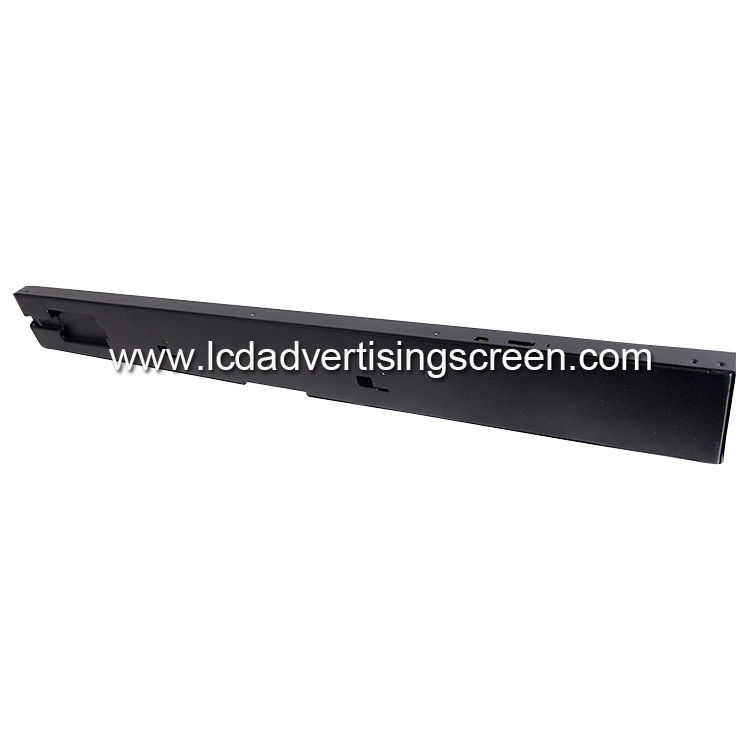

Installation | wall-mounted |
material | Metal materials |
Net | ≤0.7KG |
Surface treatment | Black metal paint |
Environmental | |
Storage Environment | Temperature:-20℃~60℃ Humidity:5%~95% Atmospheric Pressure:86kPa~104kPa |
Working Environment | Temperature:0℃~45℃ Humidity:10%~85% Atmospheric Pressure:86KPa~104KPa |
Packing list | |
Admachine | 1Pcs |
OTG/Cable | 1Pcs(OTG cable,micro USB to USB 2.0) |
Adapeter | 1Pcs (12V-2A) |
Support for special requirements customization |
