6.5ms 2000cd/M2 Dustproof TFT Advertising Lcd Display

6.5ms 2000cd/M2 Dustproof TFT Advertising Lcd Display

  • High Light

    TFT Advertising Lcd Display


    Dustproof Advertising Lcd Display


    2000cd/M2 Outdoor Digital Signage

  • Product Name
    Outdoor Advertising Display
  • Type
  • Size
  • Response Time
    6.5ms (Typ.)(G To G)
  • Display Color
  • Keywords
    55 Inch Digital Signage High Brightness Sunlight Readable Lcd Screen
  • Material
    TFT LCD Display
  • Item
    Backlight Lcd Screen 85inch
  • Music Format
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
  • Packaging Details
    Standard export package
  • Delivery Time
    2-15 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability

6.5ms 2000cd/M2 Dustproof TFT Advertising Lcd Display

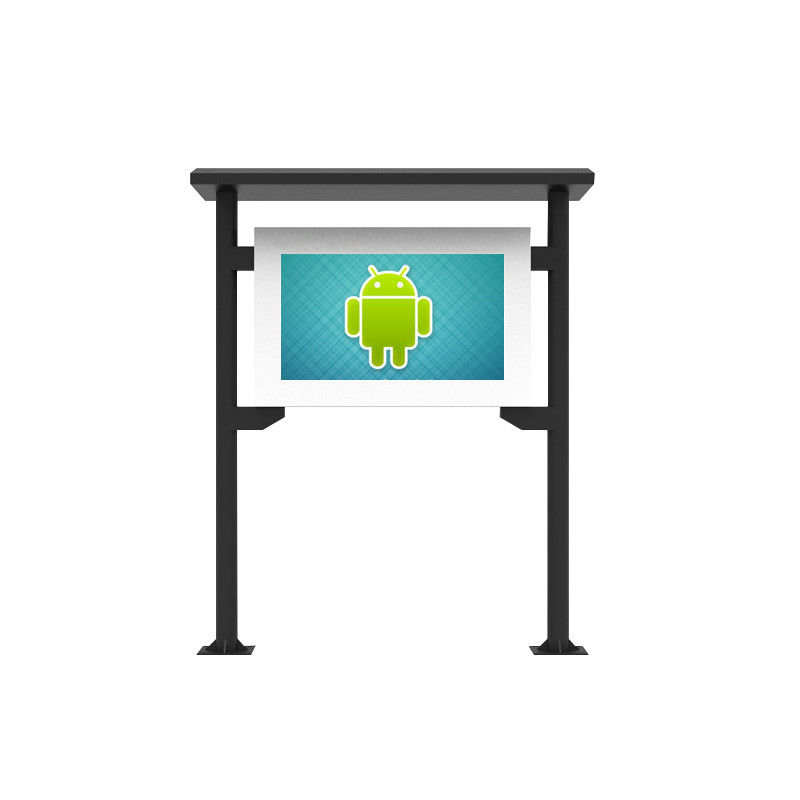

Wifi digital signage lcd outdoor display in 55 inch in floor standing keep protection android pc system displayer


Quick detail:

1.Full outdoor waterproof,dustproof,antitheft,explosion proof.

2.Anti corrosion outdoor for more than 8 years.

3.Fully modular design for easy installation and maintenance.

4.AR anti-glare glass,high transmittance and low reflection ,UV production.

5.Android or PC system can be choosen.











Panel type 55" LCD panel
Display size 1428.5*803.5
Display scale 16:9
Backlight type LED
Resolution 1920*1080
Brightness 2000cd/m2
Contrast 3000:1
Viewing angle 178°(H) / 178°(V)
Service life 60000 hours

Front protective glass


6mm AR laminated glass


99.99% sun UV
More than 50% of solar radiation
Light transmittance is over 93%
Reflectance is less than 3%
The total heat insulation rate of sunlight is over 50%
Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater)
cooling system


Fully intelligent independent research and development of cooling system

Voltage 24V
Operating voltage 20.4-27.6V
Starting voltage 12V
Average speed 2400 rpm minimum speed 2160 rpm
Average current 0.26A maximum current 0.312
Access to power average 3.12 max 3.74
Average airflow 74 minimum airflow 66.6
Average static pressure 2.0 Minimum static pressure 1.8
Noise 33db
It can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees.
Electrical parts Backlight power supply According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers)
Automatic light perception Automatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness
Lightning protection device Zhengtai lightning protection device
AC contactor Chint AC contactor
Microcomputer time switch Time switch can be set in different time periods. More than 20 groups can be set.
power input AC 108-115V AC 208-240V
Total power 300W
Nanocapacitor touch film Types Nano touch
Touch mode finger
Touch effective recognition >=5mm
Touch accuracy ±5mm
Touch points 10 Points
First response time 10 milliseconds
Number of touches Any





Fan power supply 24V
Screen display and backlight power supply 24V+12V hybrid power supply 200-400W
Operating temperature -35-55°


Product related

storage temperature -20°C to 60°C
Working humidity 5% to 100%
Storage humidity 5% to 100%
Installation method Floor-mounted installation
External structural member Shape packaging Use pearl cotton shock absorber + wooden frame packaging
Exterior color black
shell material Hot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder
Gross weight 180KG
