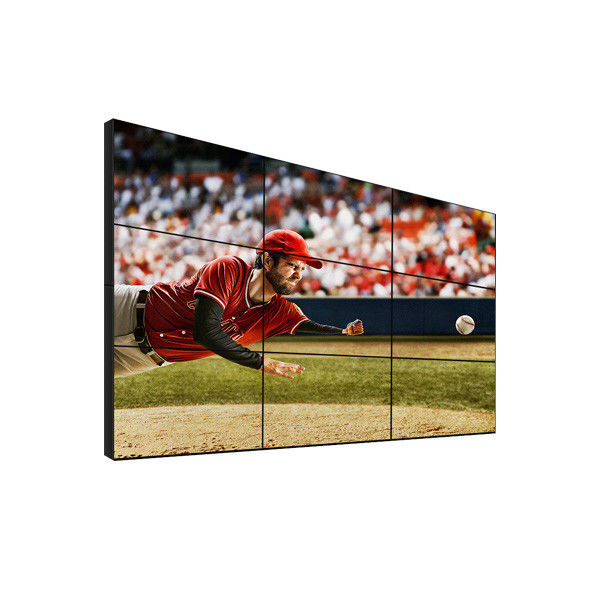

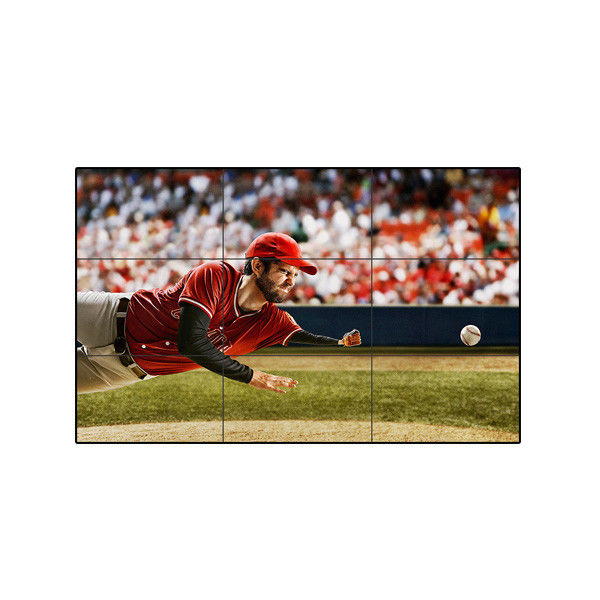

55 inch 1.8mm narrow edge gap 3x3 4x4 splicing screen Digital video wall lcd display wall with HDMI controller
Quick detals:
LED-DID Industrial HD&High-brightness narrow edge LED Narrow Edge
Design: Minimum 0.44mm. High Resolution Ratio: 1920*1080 High-brightness:
700cd/sqm Super wide visual angle:178(H)/178(V). Unique DNX motion supplement image processing technology
Hardware architecture, no CPU and operating system.
*The startup time is less than 10 seconds, and the startup is fast.
*No risk of virus infection and good safety.
*Integrated multi-channel video signal source types: HDMI 2.0, DVI 2.0, VGA, CVBS composite video, USB multimedia playback.
*The unit can support LCD screens driven to 3840x2160@60HZ.
* RS232 serial port remote control; each unit supports two RS232 loop outputs.
*Can work continuously 24 hours a day.
*HDMI supports signal 4K x 2K@60HZ signal input.
*Support timing switch, and select several switch modes (optional).
*Accurately encrypt by year, month and day, and automatically lock when expired (optional).
*Contains USB interface, can update the program with one key through U disk, convenient and fast.
*Environmental protection, the power consumption of the whole machine can be lower than 0.5w in standby mode.
*Intelligent temperature control, detect the body temperature and automatically turn on the fan.
* Support signal 180 degree rotation.
Description:

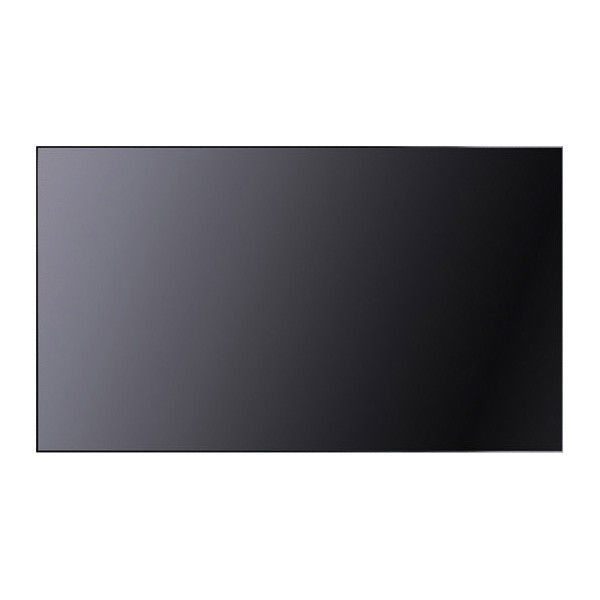

The 55-inch LCD splicing screen means that the diagonal length of the LCD splicing screen is 55 inches. Generally
speaking, the length and width of a 55-inch screen is about 120cmx72cm. Due to the design differences of each LCD
manufacturer’s screen, the thickness of each 55-inch screen will vary.
Specifictaion:
Specification: | ||||
Specification/Model | MD-553 | Panel No | LD550DUN-TMA1 | |
Screen Aspect Ratio | 16:9 | |||
Specification | DID LG panel | |||
Gap | 0.88 mm | |||
Brightness | 700cd | |||
Back light | LED backlight | |||
Resolution Ratio | 1920*1080 | |||
Color Components | 16.7M | |||
Power Consumption of Stand-alone | 250W | |||
Power Supply | Input:AC110-220V-50/60Hz | |||
Service Life of Panel | 60000Hours | |||

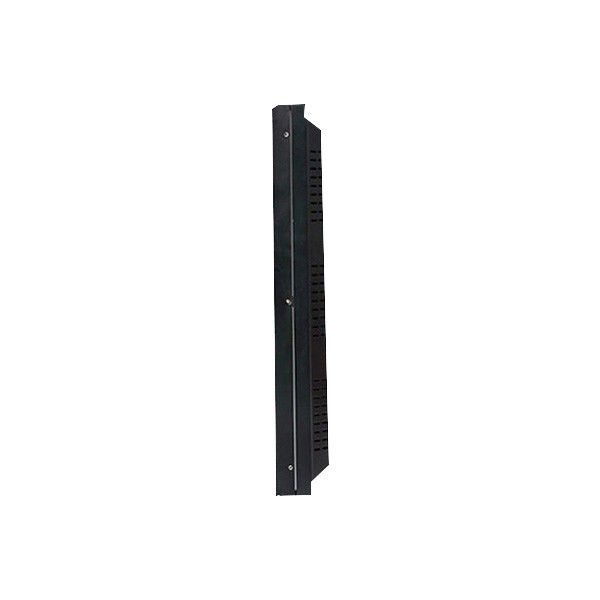

Machine Frame(±1mm) | 1214.04*684.84*120.65mm | |||
Shell Frame(±1mm) | Left side0.44mm/right side0.44mm/top0.44mm/bottom0.44mm | |||
Panel Display Area | (Width)1213.6mm*(Height)684.4mm | |||
Input Port | 3*BNC, 1*VGA, 1*DVI,1*HDMI, RJ45 | |||
VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 | |||
HDMI Resolution Ratio HDMI | 480I,480P,576I,720P,1080I,1080P | |||
Split Screen/PIP Mode | Two signals image or PIP | |||
Splice Function | Multiscreen Splice Function(image processing Function) | |||
Accessory | lcd panel,splicer,HDMI cable,Floor stand bracket,control software ect.. |
Application field
1. Airports, ports, docks, subways, highways and other transportation industry information display terminals
2. Financial and securities information display terminal
3. Display terminals for commerce, media advertising, product display, etc.
4. Education and training/multimedia video conference system
5. Dispatch and control room 6. Broadcasting and television, large-scale studio/performance venues
6. Emergency command systems for military, government, and cities
7. Mining and energy security monitoring system
8. Command system for fire control, meteorology, maritime affairs, flood control, and transportation hub.
Advantages:
1. Long life and low maintenance cost
2. Large viewing angle
3. High resolution and bright picture
4. Ultra-thin and lightweight
5. Low power consumption and low heat generation
6. Long trouble-free time and low maintenance cost
7. Innovation and advancement
8. Economy
