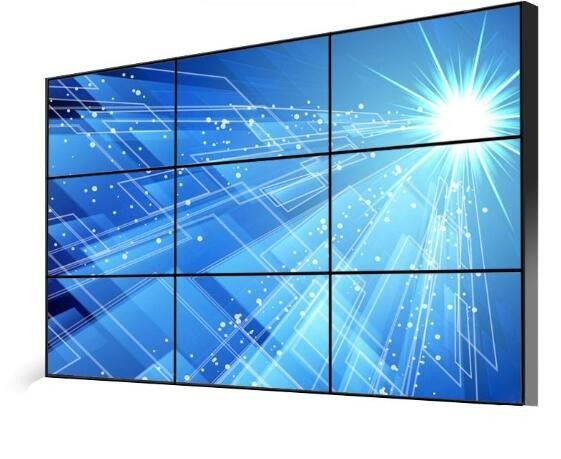

LTI550HN11 Stitching Gap 3.5mm LCD Advertising Screen

LTI550HN11 Stitching Gap 3.5mm LCD Advertising Screen

  • High Light

    Stitching LCD Advertising Screen

    ,

    Gap 3.5mm LCD Advertising Screen

  • Panel Model
    LTI550HN11
  • Gap
    3.5mm
  • Resolution
    2k 1920*1080
  • Dimension
    1211.54*682.34*118.5mm
  • Function
    Single Display ; Full Screen Display
  • Part
    LCD Panel ; Splicer ; Control Software ; Bracket Ect.
  • Place of Origin
    Shenzhen China
  • Brand Name
    Genevision
  • Certification
    CE CCC FCC ROHS
  • Model Number
    MD550HN11
  • Minimum Order Quantity
    4pcs
  • Packaging Details
    Cartoon box first, Then wooden case package
  • Delivery Time
    5-8 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10000pcs/Month

LTI550HN11 Stitching Gap 3.5mm LCD Advertising Screen

In Stock Several Screens Make of LCD Video Wall 46 Inch 55 Inch 65 Inch for Option HDMI Controller Splitter Matrix



Best Price+technology team+after service+1 year warrantly



1. Ultra-narrow stitching, only 1.7mm after bilateral stitching, basically achieving seamless display effect

2. Large size, using Samsung 55-inch LCD panel, larger size, less splicing required for the same display area

3. Continuing all the advantages of Samsung panel, stable technology, soft screen processing technology, etc.

4, white balance display effect is good, the efficiency of white display can reach more than 75%, plus the advantages of the frame, which makes it a good application in the field of high-end pursuit of the best display effects, such as conference room display, high-tech Exhibition hall, big data analysis center, etc.

5. Brightness (500cd / m2),

6. Light and dark contrast (5000: 1)

7, resolution 1920 * 1080, and can be superimposed display to achieve 4K display function

8. Support 365 days of continuous boot, 60,000 hours of light source

9. Support full screen display, single screen display, screen split display, splicing display, overlay roaming, and any combination display

10. Abundant interfaces, including HDMI, VGA, DVI, VIDEO, RS232 and network ports, etc.

11, can be wall-mounted, TV wall, front maintenance, branch wall and other installations

LCD panel specification:



SAMSUNG LTI550HN16 Mechanical Features

Screen Size : 55"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.210×0.630 mm 0.630×0.630 mm
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
1209.6×680.4 mm - 1211.6×682.4 mm 38.7/68.1 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Videowall Seam
Flat Rectangle 16:9 Landscape / Portrait 2.0 mm (Active to Active)
Other Spec : Mass Panel Cover Surface Treatment
15.0/17.0Kgs (Typ./Max.) - Antiglare (Haze 25%), Hard coating (2H)



SAMSUNG LTI550HN16 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) SVA, Normally Black, Transmissive 4000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 8 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
9218K 16.7M (8-bit) X:0.284; Y:0.297
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73%

99

%

76%
DCI-P3 Coverage Rec.2020 Coverage Remarks
76% 55% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.18 (Max.)(9 points)

SAMSUNG LTI550HN16 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Direct light type 50K(Min.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
YEONHO 20022WR-14B2 1 pcs 14 pins 2.0 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
24.0±2.0V 4.99/5.13A (Typ./Max.)
