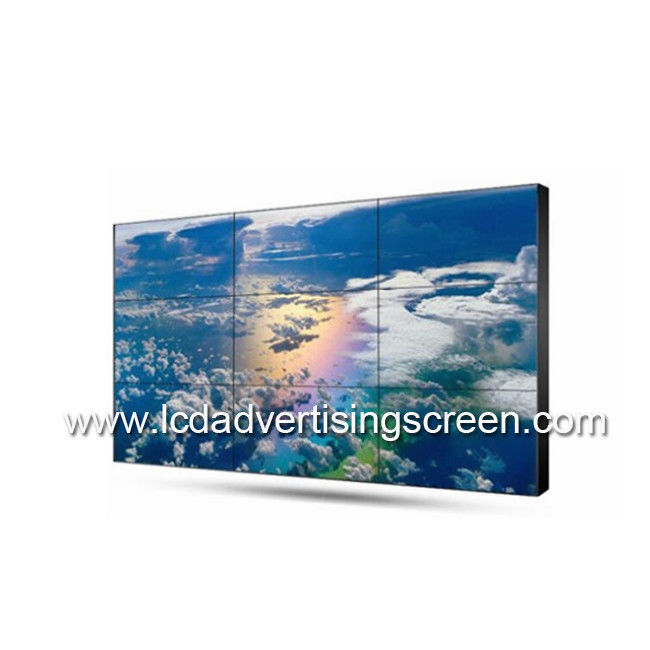

LG Video Wall Panel 49Inch With HDMI Controller 500cd Brightness
The 49-inch ultra-narrow-edge splicing screen uses the industrial-grade LCD panel of a well-known LG brand, combined with narrow-bezel splicing technology, signal switching technology, non-destructive remote transmission technology, image stitching processing technology and other comprehensive applications to form a set of functional diversification and control The intelligent and advanced LCD splicing display system shows customers high-quality LCD splicing pictures with high brightness, high definition and no interference. The LCD splicing screen display system should be able to ensure 7x24 hours and 365 days of uninterrupted use. The LCD splicing screen should have higher resolution, adjustable brightness and contrast, wide range, true color reproduction, small image distortion, uniform brightness, clear display, simple system operation, convenient maintenance, and long service life.
5ms quick response
With a quick response time of 5ms, the screen is smoother when displaying dynamic images, and the display effect is perfect in various harsh environments;
49-inch ultra-narrow bezel splicing screen adopts LED backlight technology, and the service life can reach more than 60,000 hours;
Advanced 3D image processing technology
Apply advanced progressive image processing and digital signal noise reduction, leading motion compensation technology, completely improve the aliasing and blurring of the edges of moving pictures, and use dynamic contrast technology to significantly improve the clarity and contrast of various pictures.
1. Wide voltage input, universal worldwide;
2.Various signal interfaces, strong compatibility;
3. The menu interface is simple and easy to operate;
4. Controlled by software, the operation is simple and convenient;
5. Industrial-grade LCD screen has a long service life and high cost performance;
6.Using rugged metal casing, anti-static, anti-magnetic field, strong anti-interference.
LCD panel Specifications:
|LG Display Application Details|
|Basic Info||Panel Brand||Panel Model||LD490DUN-TJB2|
|Diagonal Size||49"||Model Alias||LD490DUN-TJB2|
|Panel Type||a-Si TFT-LCD , LCM||Storage Temp.||-20 ~ 60 °C|
|Pixel Features||Pixel Format||1920(RGB)×1080, FHD||Dot Pitch||0.18642×0.55926 mm (H×V)|
|Configuration||RGB Vertical Stripe||Pixel Pitch||0.55926×0.55926 mm (H×V)|
|Mechanical Size||Display Area||1073×604mm (H×V)|
|Outline Dim.||1075×605 mm (H×V)|
|Outline Features||Form Factor||Flat Rectangle||Orientation||Landscape / Portrait|
|Aspect Ratio||16:9 (H:V)||Videowall Seam||1.8mm (Active to Active)|
|Holes & Brackets||Side mounting holes, Rear mounting holes|
|Other Features||Weight||25Kgs (Typ./Max.)||Surface||Antiglare (Haze 3%), Hard coating (2H)|
|Basic Information||Brightness||500 cd/m² (Typ.)||Contrast Ratio||1300:1 (Typ.) (Transmissive)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)||Optical Mode||S-IPS, Normally Black, Transmissive|
|Viewing Direction||Symmetry||Response Time||8 (Typ.)(G to G) ms|
|Color Performance||Chromaticity||Wx:0.279; Wy:0.292||Color Numbers||16.7M/1.07B (8-bit / 8-bit + Dithering)|
|Color Temperature||9972K||Uniformity||1.54 (Max.)(9 points)|
|1931 Color Gamlt||NTSC Ratio||72%||sRGB||98% coverage|
|Adobe RGB||75% coverage||DCI-P3||75% coverage|
|Rec.2020||54% coverage||Remarks||sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)|
|Power Consumption||82.1W (Typ.)|
|Power supply||AC 110V - 240V, 50/60HZ|
|Storage Temperature||-7 to 65 Celsius degree|
|Normal Working Temperature||-5 to 65 Celsius degree|
