High Brightness LCD Video Wall Samsung Panel 65 Inch Narrow Bezel 3.5 Mm

High Brightness LCD Video Wall Samsung Panel 65 Inch Narrow Bezel 3.5 Mm

  • High Light

    samsung video wall


    wall screen monitor

  • Resolution
  • Bezel Size
    Single Size 3.5mm
  • Screen Size
    65inch DID Lcd Video Wall Screen
  • Panel No
  • Brightness
  • Backlight
    LED Backlight
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Packaging Details
    Cartoon box with bubble,then wooden case package
  • Delivery Time
    5-10 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability

High Brightness LCD Video Wall Samsung Panel 65 Inch Narrow Bezel 3.5 Mm

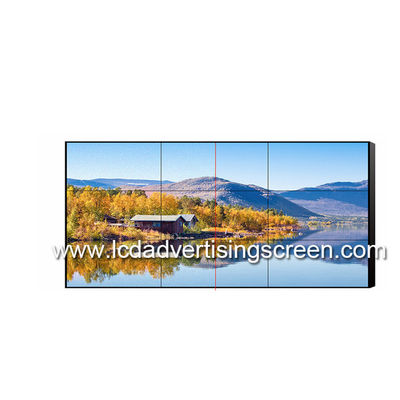

LCD Video Wall Samsung Panel 65 Inch Narrow Bezel 3.5 mm With Hight Brightness


Product Details


The 65-inch ultra-narrow-edge splicing screen uses the industrial-grade LCD panel of a well-known Samsung Samsung brand, combined with ultra-narrow-edge splicing technology, signal switching technology, non-destructive remote transmission technology, image stitching processing technology and other comprehensive applications to form a set of functional diversification and control The intelligent and advanced LCD splicing display system shows customers high-quality LCD splicing pictures with high brightness, high definition and no interference. The LCD splicing screen display system should be able to ensure 7x24 hours and 365 days of uninterrupted use. The LCD splicing screen should have higher resolution, adjustable brightness and contrast, wide range, true color reproduction, small image distortion, uniform brightness, clear display, simple system operation, convenient maintenance, and long service life.


Product Features

5ms quick response

With a quick response time of 5ms, the screen is smoother when displaying dynamic images, and the display effect is perfect in various harsh environments;

Service life

65-inch ultra-narrow side splicing screen adopts LED backlight technology, and the service life can reach more than 60,000 hours;

Advanced 3D image processing technology

Apply advanced progressive image processing and digital signal noise reduction, leading motion compensation technology, completely improve the aliasing and blurring of the edges of moving pictures, and use dynamic contrast technology to significantly improve the clarity and contrast of various pictures.

Easy control and open protocol

Our company's self-developed software is controlled through the RS232 serial port. The software uses full Chinese and graphic interface design. It can easily control the splicing screen and adjust various parameters through simple mouse and keyboard operation. The RS232 serial port control protocol is provided free of charge, which is convenient for users to flexibly adopt third-party control systems to build large-screen splicing walls or other display applications.

High temperature and dust resistance

Adopted high temperature resistance and dustproof design, which has the characteristics of high temperature resistance and good dustproof performance, and is more suitable for splicing display in harsh environment. And the splicing screen can choose industrial cooling fan design, reduce the temperature of the whole machine, improve the reliability of the whole machine, support 7x24 hours of continuous work


LCD panel Specifications:

  Samsung Display Application Details


Basic Info

Basic Info Panel Brand Panel Model LTI650FN01
Diagonal Size 65" Model Alias LTI650FN01 (TH)(C4)
Panel Type a-Si TFT-LCD , LCM Storage Temp. -20 ~ 60 °C
Pixel Features Pixel Format 1920(RGB)×1080, FHD Dot Pitch 0.18642×0.55926 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.55926×0.55926 mm (H×V)
Mechanical Size Display Area 1428.78×803.21mm (H×V)
Outline Dim.

1432.6×807.8 mm (H×V)

Outline Features Form Factor Flat Rectangle Orientation Landscape / Portrait
Aspect Ratio 16:9 (H:V) Videowall Seam 3.5 mm (Active to Active)
Holes & Brackets Side mounting holes, Rear mounting holes
Other Features Weight 25Kgs (Typ./Max.) Surface Antiglare (Haze 3%), Hard coating (2H)
Optical Details
Basic Information Brightness 700 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode S-IPS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 8 (Typ.)(G to G) ms
Color Performance Chromaticity Wx:0.279; Wy:0.292 Color Numbers 16.7M/1.07B (8-bit / 8-bit + Dithering)
Color Temperature 9972K Uniformity 1.54 (Max.)(9 points)
1931 Color Gamlt NTSC Ratio 72% sRGB 98% coverage
Adobe RGB 75% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Frame Frequency 60Hz
Reverse Scan No
Power Consumption 82.1W (Typ.)
Power supply AC 110V - 240V, 50/60HZ
Storage Temperature -7 to 65 Celsius degree
Normal Working Temperature -5 to 65 Celsius degree


High Brightness LCD Video Wall Samsung Panel 65 Inch Narrow Bezel 3.5 Mm 0High Brightness LCD Video Wall Samsung Panel 65 Inch Narrow Bezel 3.5 Mm 1




Question: Are you a trade company or a manufacturer?
Answer: We are an BV, TUV etc. approved manufacturer, welcome to visit our factory

Question: What is your MOQ?
Answer: Our MOQ is 1 piece as well as we can accept the sample order and mostly products can be customzied.

Question: Can I print my logo on led light product?
Answer: Yes. Please inform our sales man before our production and confirm the design firstly based on our sample.

Question: How can I get some samples?
Answer: We are glad to offer you samples, pls contact our online sales.

Question: How do you ship the products and how long do it take to arrive?
Answer: Usually ship by DHL, UPS, FedEx or TNT, or send by air or sea . It usually takes 3-5 days to arrive. Airline and sea shipping or others also optional.

Question: do you support After-sales Service?
Answer: yes,Online support & Video technical support.

Question: Do you offer Warranty time for the products?
Answer: Yes, we offer One year for our products.
