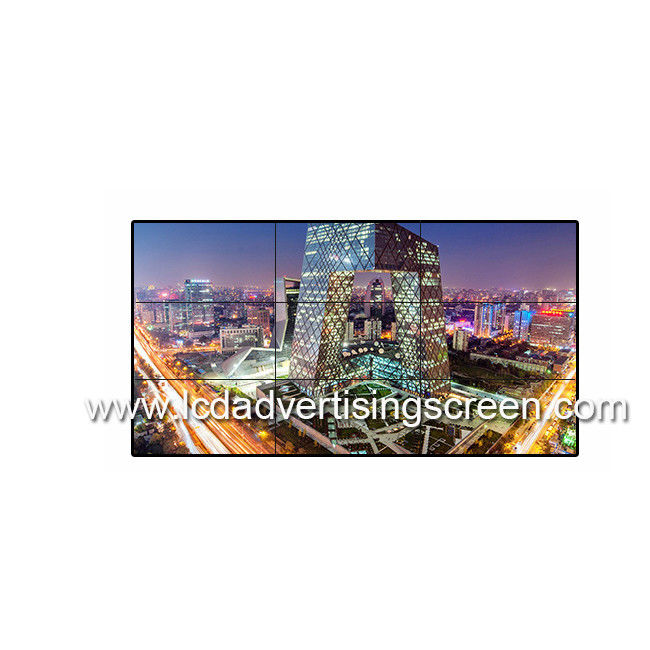

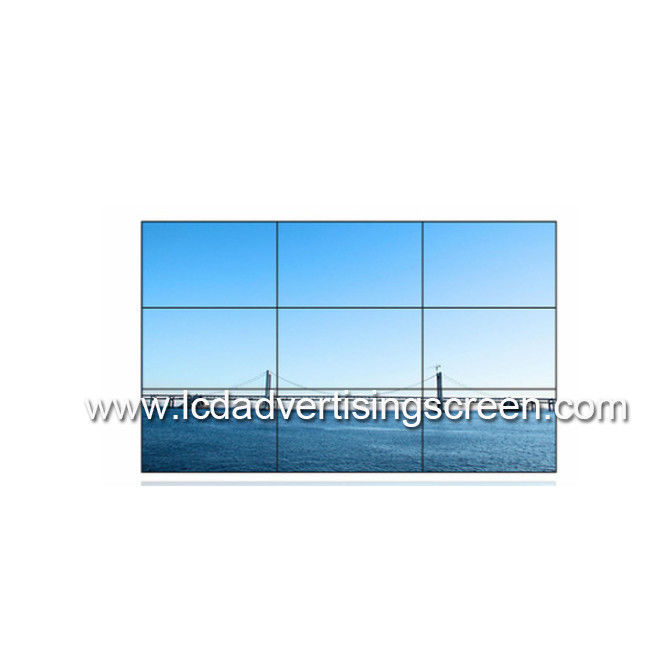

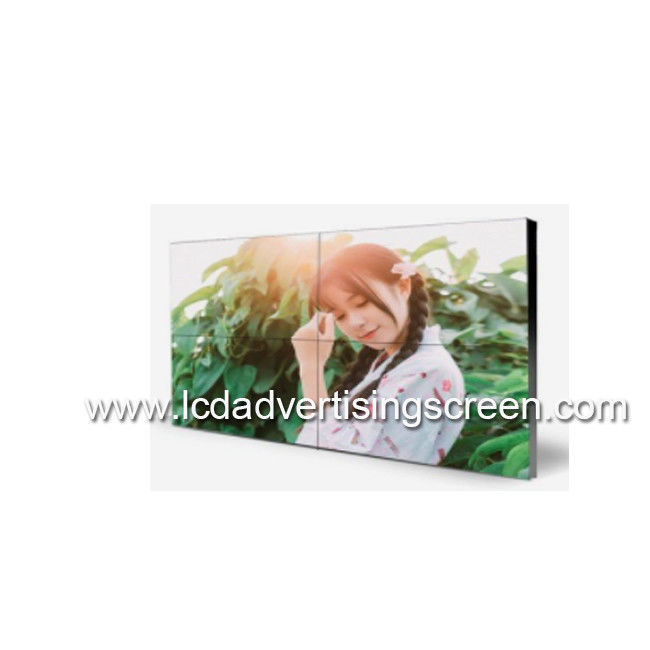

46 Inch LCD Video Wall Samsung Monitor Narrow Bezel 3.5 mm With HDMI Resolution
The 46-inch ultra-narrow-edge splicing screen uses the industrial-grade LCD panel of a well-known Samsung Samsung brand, combined with ultra-narrow-edge splicing technology, signal switching technology, non-destructive remote transmission technology, image stitching processing technology and other comprehensive applications to form a set of functional diversification and control The intelligent and advanced LCD splicing display system shows customers high-quality LCD splicing pictures with high brightness, high definition and no interference. The LCD splicing screen display system should be able to ensure 7x24 hours and 365 days of uninterrupted use. The LCD splicing screen should have higher resolution, adjustable brightness and contrast, wide range, true color reproduction, small image distortion, uniform brightness, clear display, simple system operation, convenient maintenance, and long service life.
5ms quick response
With a quick response time of 5ms, the screen is smoother when displaying dynamic images, and the display effect is perfect in various harsh environments;
46-inch ultra-narrow side splicing screen adopts LED backlight technology, and the service life can reach more than 60,000 hours;
Advanced 3D image processing technology
Apply advanced progressive image processing and digital signal noise reduction, leading motion compensation technology, completely improve the aliasing and blurring of the edges of moving pictures, and use dynamic contrast technology to significantly improve the clarity and contrast of various pictures.
Easy control and open protocol
Our company's self-developed software is controlled through the RS232 serial port. The software uses full Chinese and graphic interface design. It can easily control the splicing screen and adjust various parameters through simple mouse and keyboard operation. The RS232 serial port control protocol is provided free of charge, which is convenient for users to flexibly adopt third-party control systems to build large-screen splicing walls or other display applications.
LCD panel Specifications:
|Samsung Display Application Details|
|Basic Info||Panel Brand||Panel Model||LTI460HN11|
|Diagonal Size||46"||Model Alias||LTI460HN11 (TH)(C4)|
|Panel Type||a-Si TFT-LCD , LCM||Storage Temp.||-20 ~ 60 °C|
|Pixel Features||Pixel Format||1920(RGB)×1080, FHD||Dot Pitch||0.18642×0.55926 mm (H×V)|
|Configuration||RGB Vertical Stripe||Pixel Pitch||0.55926×0.55926 mm (H×V)|
|Mechanical Size||Display Area||1221.78×576.21mm (H×V)|
|Outline Dim.||1218.6×572.8 mm (H×V)|
|Outline Features||Form Factor||Flat Rectangle||Orientation||Landscape / Portrait|
|Aspect Ratio||16:9 (H:V)||Videowall Seam||3.5 mm (Active to Active)|
|Holes & Brackets||Side mounting holes, Rear mounting holes|
|Other Features||Weight||25Kgs (Typ./Max.)||Surface||Antiglare (Haze 3%), Hard coating (2H)|
|Basic Information||Brightness||500 cd/m² (Typ.)||Contrast Ratio||1300:1 (Typ.) (Transmissive)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)||Optical Mode||S-IPS, Normally Black, Transmissive|
|Viewing Direction||Symmetry||Response Time||8 (Typ.)(G to G) ms|
|Color Performance||Chromaticity||Wx:0.279; Wy:0.292||Color Numbers||16.7M/1.07B (8-bit / 8-bit + Dithering)|
|Color Temperature||9972K||Uniformity||1.54 (Max.)(9 points)|
|1931 Color Gamlt||NTSC Ratio||72%||sRGB||98% coverage|
|Adobe RGB||75% coverage||DCI-P3||75% coverage|
|Rec.2020||54% coverage||Remarks||sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)|
|Power Consumption||82.1W (Typ.)|
|Power supply||AC 110V - 240V, 50/60HZ|
|Storage Temperature||-7 to 65 Celsius degree|
|Normal Working Temperature||-5 to 65 Celsius degree|
Answer: We are an BV, TUV etc. approved manufacturer, welcome to visit our factory
Answer: Our MOQ is 1 piece as well as we can accept the sample order and mostly products can be customzied.
Answer: Yes. Please inform our sales man before our production and confirm the design firstly based on our sample.
Answer: We are glad to offer you samples, pls contact our online sales.
Answer: Usually ship by DHL, UPS, FedEx or TNT, or send by air or sea . It usually takes 3-5 days to arrive. Airline and sea shipping or others also optional.
Answer: yes,Online support & Video technical support.
Answer: Yes, we offer One year for our products.
