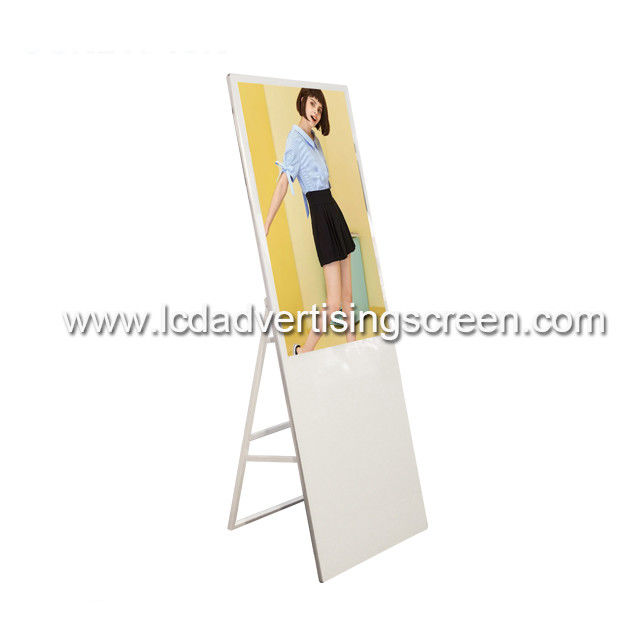

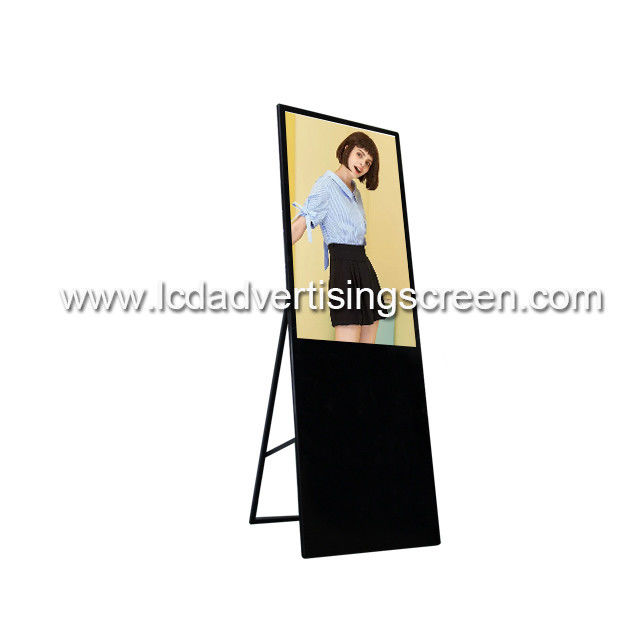

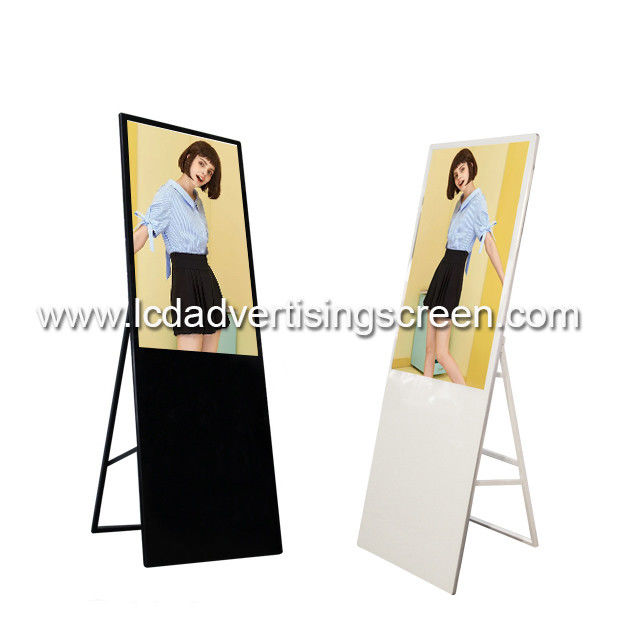

43 49 55 Inch New type Ultra Thin vertical portable lcd advertising screens for shopping mall
1. Our company offer OEM/ODE service
2. Customized size 22 32 43 47 49 55 65 inch.
3. Strong engineer team to help customer
4. Professional: 10+ years experience on digital signage
5. Quality guaranteed: Got CE, ROHS, UL, ISO9001 etc. certificates
6. Service: on time delivery + 24/7 online service + 13 months warranty period
LCD advertising screen parameters:
Display size: 43 inches LCD screen
Cabinet size: 1848mm*638mm*75mm
Display area: 526mmX940mm
The service life is not less than 50000h
Backlight mode: LED back-light
Viewing angle: 178/178 up / down
Brightness: 400cd/m
Image scale: 16:9
Response time: 8ms
Color: 16.7M
Pitch: 0.5415*0.5415mm
Front toughened glass visual area protection, aluminum wrapping, cold rolled plate material
Power supply: AC110-240V
Power: 98W,
Standby power consumption: 15W
Audio output: 8 euro 10 W X
Resolution: 1080X1920
Color: Black (color can be customized)
Motherboard configuration:
System: Android wifi
CPU:Mstar Dual core and 8gb memory(spport expand)

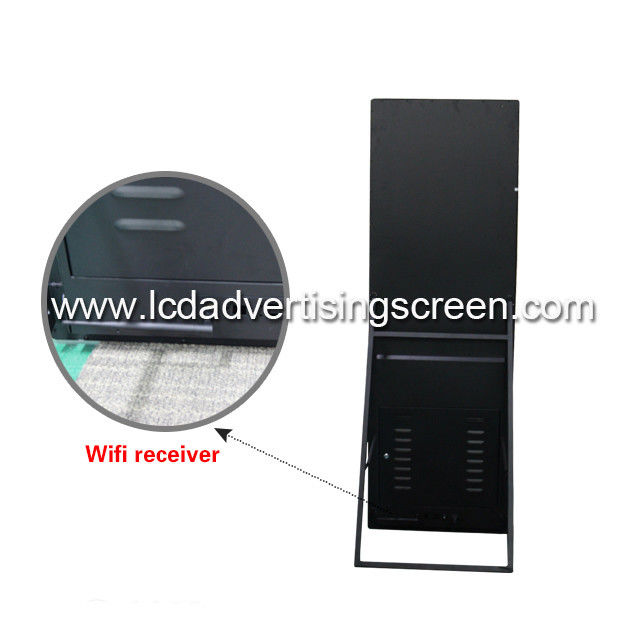

Storage card type: USB, WLAN
Support video format:
MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, DVI, TS, TRP, WMV, M2TS, MKV, RM, RMVB
Support picture format: JPEG, BMP, PNG
Support music format: MP3, WMA
Video decoding support: the maximum resolution of 1920*1080@60HZ, the maximum color depth: 24Bit, maximum number of frames: 30Frm/s, the largest stream: USB2.0 device:20Mbit/sec
Audio decoding support:
Sampling rate: 32kHz, 44.1kHz, 48kHz, 96kHz
Bit rate: 32kbps to 448kbps
Base: distribution
Android mainboard:
Mainboard | CPU | Quad-core ARM architecture A7; 1.3GHz |
Flash memory | 1GByte DDR3 1600MHz | |
Memory | 8GB | |
Support format | video | MPEG2,AVI,MP4,DIV,TS,TP,TRP,MKV,MOV,DAT,ASF,WMV,RM,RMVB |
format | ||
Picture format | JPEG,PNG | |
Music format | MP3,MP2,WMA,WAV | |
Video decoding support | Max resolution | 1920*1080 |
The largest color depth | 24bit | |
The biggest frame rate | 30frm/s | |
The largest stream | USB2.0 device:30Mb/s | |
Audio decoding support | The sampling rate | 32kHz,44.1kHz,48kHz,96kHz |
Bit rate | 32kbps to 384kbps | |
Power | DC 12V /5V(The power supply is chosen according to actual deman) | |
Power consumption | < 3.5W(The power consumption of the plate itself at work; The screen panel, backlight and power consumption are calculated according to the actual size) | |
Sound output | Connect 8Ω/7W speaker | |
U S B Transmission rate | USB2.0,Max 480Mbps | |
Wire network interface | 100Mbps | |
Wireless WIFI interface | 100Mbps | |
Overall dimensions |
113mm(L) x 87mm(W) x 18mm(H)
|
