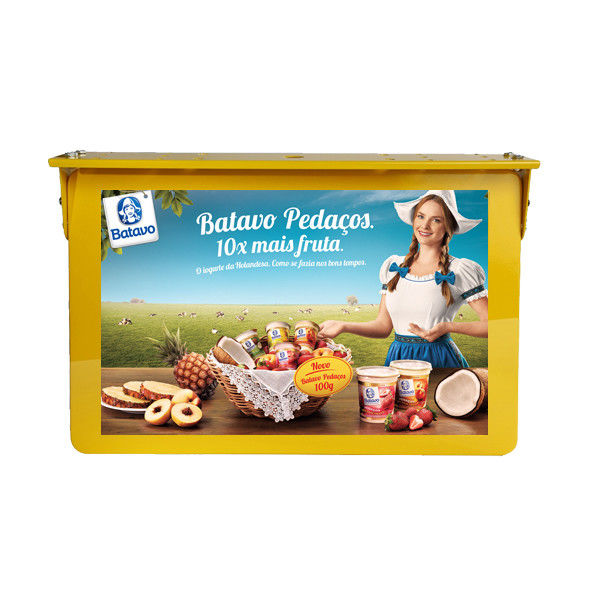

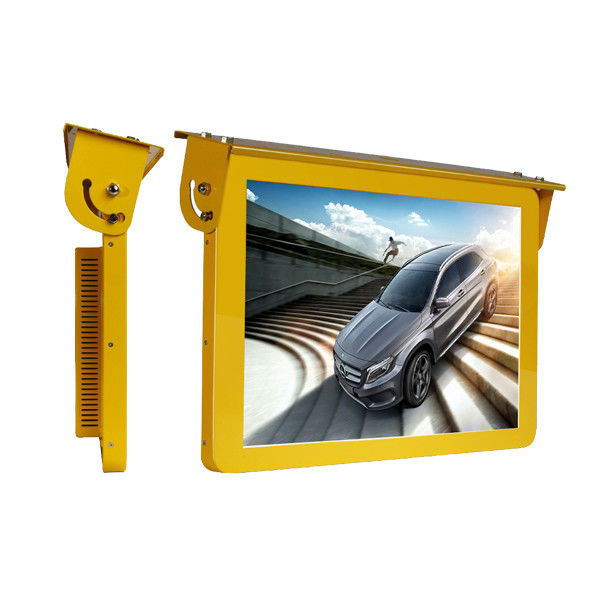

Wall Mounted Bus Digital Signage Lcd Car Taxi Hanging Advertising Display
Product quick detail:
Panel size: 18.5"
Resolution: 1366 (RGBW) * 768
Display size: 409.8 (horizontal) *230.4(vertical) mm
Brightness (cd/m2):350 (Typ.)
Best angle: full view
Visual angle: 89/89/89/89 (Min.) (CR = 10)
Pitch: 0.0825x0.2475mm
Color quantity: 16.7M, 72% (CIE1931)
Screen weight: 1.67Kgs (Typ.)
Refresh frequency: 60Hz
Signal system: 30 pins LVDS (2 CH, 8-bit), terminal
Supply voltage: 5.0V (Typ.)
Maximum rating: storage temperature: -20 ~ 60 degrees C operating temperature: 0 ~ 50 degrees C
Screen type: LCD module, a-Si TFT-LCD
Pixel configuration: RGBW vertical strip
Appearance size: 495.6 (horizontal) * 292.2 (vertical) * 11.1 (thick) mm
Surface treatment: Fog (Haze 1%), Hard, coating (3H)
Contrast: 1000: 1 (Typ.) [transmission]
Optical mode: TN, often black display, transmission type
Response speed: 13/5 (Typ.) (Tr/Td) MS
Backlight type: WLED, [17S4P], 30K hours, no drive
CPU: RK3188, quad-core, frequency 1.6GHz
Memory: 2G
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB socket
Serial port: 3 serial socket
TVIn: CVBS input 2, support N, P standard
GPS: built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M / 100M adaptive Ethernet
Timing switch machine: support
Product feature:
1. FHD 1366*768 resolution, excellent quality of image and pictures.
2. Super slim bezel, good looking of metal frame
3. Industrial level A+ panel with longer spanlife, support 7*24hrs
4. Various and complete software, stable and reliable
5. Lock available to prevent been stolen
6. Widely used in the bus, building and lift room, supermarket, pubic places, train etc
Product application:
1.Bus, car, Metro, Train
Product specification
| Model | ||
| LCD Screen | LCD Size: | 18.5 Inch |
| Active Area: | 409.8 (horizontal) *230.4(vertical) mm | |
| Pixel Pitch: | 0.2835(W) * 0.2835 (H) (mm) | |
| Screen Ratio: | 16:10 | |
| Resolution: | 1366 x 768 (H*V) | |
| Brightness: | 250cd/m2 | |
| Color: | 16.7M (6bit+Hi-FRC) | |
| Contrast Ratio: | 4000:1 | |
| View Angle: | 85°/85°/80°/80°(L/R/U/D) | |
| Response Time | 1.5/3.5 ms | |
| Support Formats | Video: | MPEG1 (VCD), MPEG4 |
| Audio: | MP3, WMA | |
| Picture: | JPEG, BMP | |
| Play From | Memory Flash: | CF card, Max. 8GB. SD card is optional before production |
| Built-in Flash Memory: | Optional, confirm before production | |
| USB: | High speed USB 2.0 (Host & OTG) | |

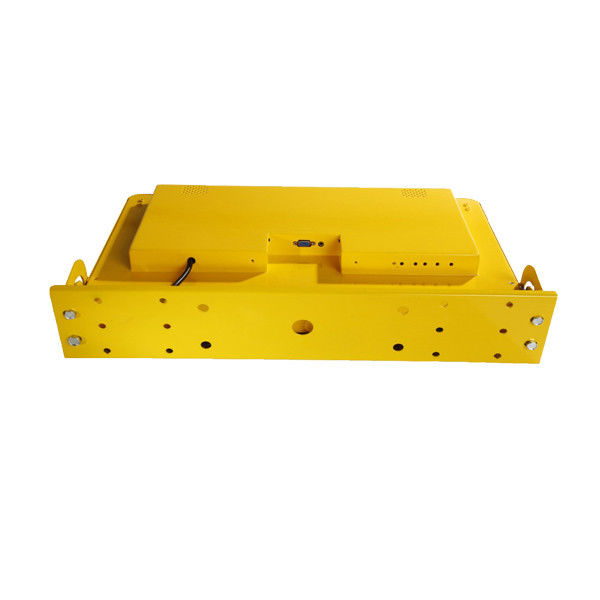

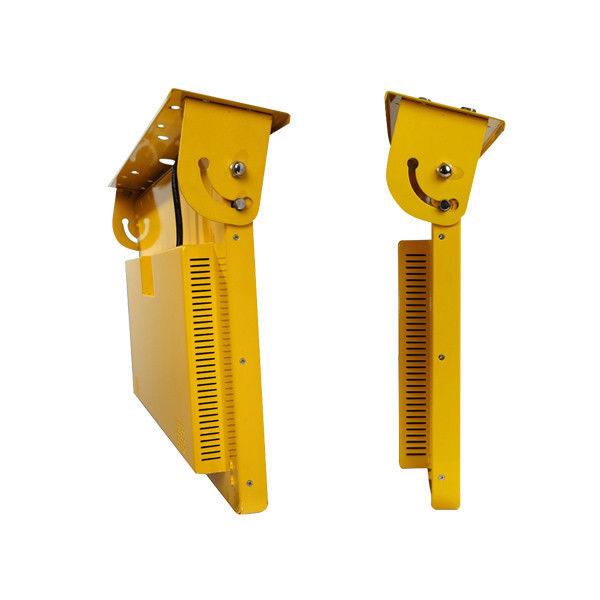

| Installation | Ceiling Mounting Bracket: | Yes/Default Bracket |
| Rear Mounting Bracket: | Yes/Optional w/ Rear Bracket Set | |
| Others | IR body Sensor Distance: | 3m, Optional |
| Remote Controller Distance: | 4-5m | |
| Power Supply: | DC12V 4A | |
| Speaker: | Built-in 2x2W high quality stereo loudspeakers | |
| Working Temperature: | 0℃-45℃ | |
| Storage Temperature: | -20℃- 60℃ | |
| Working Humidity: | 20%-80% | |
| Storage Humidity: | 10%-95% | |
| Casing: | Metal | |
| Body Size: | 517.5 (L) * 344.4(W) * 51.8(H) (mm) | |
| Body Weight: | 7.6 (kg) | |
| Package | Standard Accessories | Cigar lighter, User's manual or CD, Remote control, Spare screws |
| Unit Size: | 60.5 * 14.5 * 44 (cm) | |
| Unit Weight: | 9.5 (kg) | |
| Carton Size: | 62 * 30.5 * 46.5 (cm) | |
| Carton Weight: | 19.7 (kg) | |
| Units Per Carton: | 2 pcs | |
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer who has been in produce comprehensive products for Advertising display for more than 10 years.
2. Q: What kind of product do you offer?
A: We offer Floor standing kiosks, Charging station kiosks, Wall mout display, Folded floor kiosk, Self ordering kiosks, Digital signage LCD player for Bus, Video wall and Mirror kiosks etc....
3. Q: What is the advantage of your factory?
A: With 2000sqm of workshop, Professional engineers and skilled workers.
4. Q: What kind of certificates for products do you have?
A: We have CE, ROHS, FCC certificates for both European market and Amercan market.
5. Q: Do you accept customized design for product?
A: Yes, we are able to provide customized design for customers, logo can be printed on the product and BIOS logo can be shown on the screen when it powered on.
6. Q: What is the life span for product panel?
A: 50000 hours for the life span.
7. Q: How soon to delivery the product after place the order?
A: Usually 3 weeks for the lead time; we also have some best selling model in stock and that will be only 1 week for delivery.
8. Q: What is your warranty of your product?
A: We offer 1-3 years warranty for all products.
8. Q: Do you offer the AD management software?
A: Yes, we can provide the AD management software at cost.
Our products are sold all over the world, you can rest assured.
