Shenzhen Mercedes Technology Co., Ltd 86--18923759480 Mercedesiris@lcd18.com

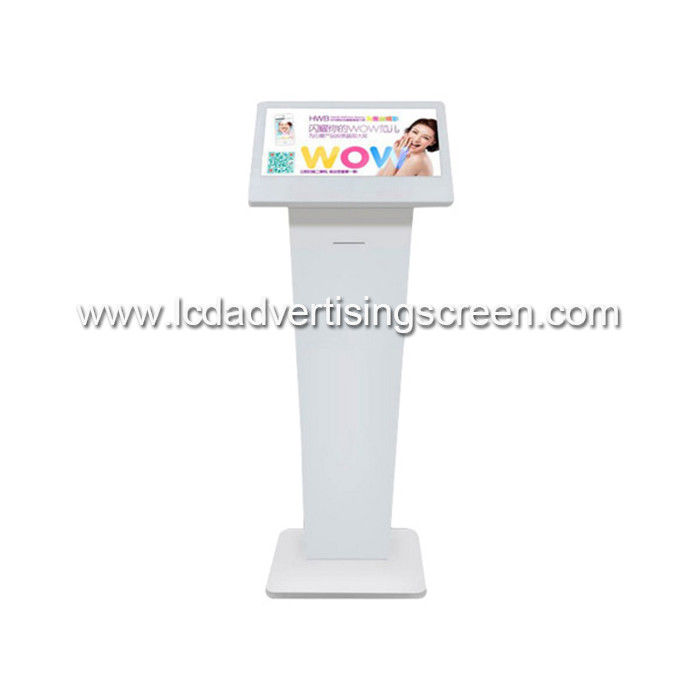

24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand

24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand

  • High Light

    vertical advertising screen

    ,

    media player display

  • Screen Size
    23.6inch
  • Touch Screen
    10-point PCAP Touch
  • System
    Android Or Windows
  • Material
    Metal And Tempered Glass
  • Application
    Shopping Mall, Library, Supermarket Etc.
  • Delivery
    Ready In Stock
  • Place of Origin
    CHINA
  • Brand Name
    GENEVISION
  • Certification
    CE, FCC, ROHS, CCC
  • Model Number
    MAD-240
  • Minimum Order Quantity
    1PC
  • Price
    USD300-USD500/PC
  • Packaging Details
    Carton and wooden box
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1000PC per month

24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand

24 Inch Slim Full HD 1080p Android 6.0 PCAP Touch Screen LCD Display Information Kiosk with Stand



Product Quick Details:

1. 23.6inch full HD 1080p resolution

2. Customized design, nice shape

3. All dependent R&D of hardware and software, efficient customized service.

4. Smooth touch experience

5. Robust housing, support 7*24h working

6. Various size and model on hot sale

7. Android or Windows system



Product Features:

10 points IR touch screen
Support shockproof and dust proof function.
Comes with WIFI
Equiped with multiple signal interfaces
Aluminum alloy body with front access touch frame module
Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen.
Available in a wide range of sizes:21.5" 23.6" 32" 42" 50" 55", 65", 75"



Product Application:

Elevator, restaurant, store, street, exhibition show, shopping mall, cinema

1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3.Non-profit Organizations:Telecommunications, post offices, hospital, schools

4.Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

6.Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.



Product Specification:



LCD Screen Size 21.5"/32"/42"/50"/55"/65"/75"optional
Panel Type TFT-LCD screen & LED backlight
Panel Brand LG
Aspect Ratio 16:9
Resolution 1920x1080
Brightness 450cd/m2
Contrast Ratio 3000:1
Response Time 5ms
Lifespan 50,000 hours
Enclosure material Aluminum frame / spray cold roll steel sheets body / Tempered glass cover
Colored system PAL/NTSC/Auto-detecting
Menu Language Multiple language for option: English (Default)
Speakers 2x5W
Noise Reduction Yes
Voltage Frequency AC100-240V
Horizon Frequency 50/60Hz
Working temperature 0-50 ºC
Working humidity 10%-90% no condensation
Storage temperature -20-80 ºC
Storage humidity 85% no condensation
Android (Optional)
Processer Quad-core
RAM 2G
ROM 8G
Interface USB/VGA/MIC/AUDIO/HDMI/RJ45/WIFI Optional
CPU Intel core i3 / i5 / i7 optional
Memory 4G /8G optional
Hard Disk 120G / 256G SSD, or 500G /1T HDD
Interface RJ45/WIFI/4G/HDMI/USB/SD
Touch type 10 points
Touch sensor infrared / capacitive optional
Touch surface 4mm tempered glass
Response time <10ms





Technical Parameter for LCD Panel Panel Size 23.6inch real color LCD screen
Aspect Ratio 16:9
Active Area 521*293mm
Max. Resolution 1920x 1080
Dot Pitch 0.63mm(H) x 0.63mm(W)
Number of Color 16.7M
Brightness 400cd/m2
Contrast Ratio 1400:1
Responsive Time 8ms
Panel Life above 50000 hours
Storage Medium Flash memory card 2gb to 36gb for the capacity
Support Ad files Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio formats MP3
Photo formats JPG
OSD Language English, Chinese, French, German, Italian, Spanish,Arabic
Audio output stereo L/R, 5W*2, 8Ω
Power supply AC 110V - 240V, 50/60HZ
Storage Temperature -7 to 65 Celsius degree
Normal Working Temperature -5 to 65 Celsius degree



Windows Main board Specification:

CPU I3, i5, i7
Memory DDR3 4G/8G
SSD 128G, 256G
SSD HDMI out*1,USB *4 ,LAN *1, VGA*1
System Beta Win10



Android Main board Specification:

CPU Quadcore, Eight core
RAM DDR3 1G/2G
Memory 8G, 16G
SSD HDMI out, USB, TF card, SD card, RJ45
System Android 6.0, Android 7.1, Android 8.1



Product Advantage:

Screen angle
HIgh adjustable interactive touch screen kiosk interactive touch screen kiosk
Surface material
4mm tempered glass + screen(with or without touch function) + metal case
Screen type
FHD TFT-LCD interactive touch screen kiosk interactive touch screen kiosk
Screen size
32/43/49/50/55/65/86/98inch interactive touch screen kiosk
Brightness
450cd/m2 interactive touch screen kiosk interactive touch screen kiosk
Hgh resolution
1920*1080p/ Support 4k customized interactive touch screen kiosk



24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand 0

24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand 1

24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand 2

24 Inch Slim Full HD 1080p Self service Android 6.0 PCAP Touch Screen LCD Display with Stand 3

FAQ:

1. About Factory:
We specialize in digital display , touch screen kiosk, interactive whiteboard and self-service kiosk over years, with 20,000 square meters workshop and 50+ workers.
2. About Sample:
Sample is availble. We always supply sample to our clients for testing and many products we prepared stock.
3. About OEM:
Welcome, We have our own hardware factory and component engineer.Please send your own design and logo,we could make it as your idea/design.
4. About Quality:
We have very strict quality controlling which promises the goods we produced are always of the best quality.
5. About Warranty:
1 years warranty, full responsibility for warranty. We are very confident in our products, if any issue, we will deal with it immediately.
6. About Service:

We provide global after-sales service.
