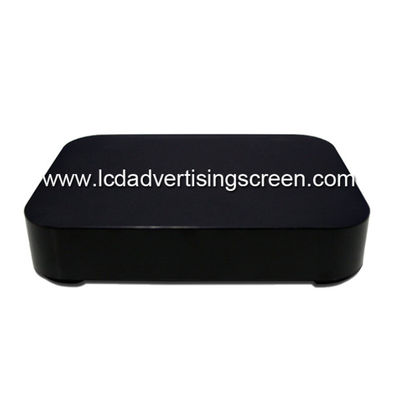

Roof Mount Digital Menu Board Media Player A20 Android with TFT LCD Monitor

Roof Mount Digital Menu Board Media Player A20 Android with TFT LCD Monitor

  • High Light

    digital signage box


    tv box android player

  • Material
    Metal Case
  • Color
    Black Or White
  • Resolution
  • Configuration
    Android Or Windows
  • Software
  • 3G 4G
    For Optional
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    carton case packed+wooden case
  • Delivery Time
    7 days to 10 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability

Roof Mount Digital Menu Board Media Player A20 Android with TFT LCD Monitor


Roof Mount Digital Menu Board Media Player A20 Android with TFT LCD Monitor



Android or PC control board combines multimedia decoding, LCD driver,Ethernet,HDMI,WIFI and amplifier in one, supporting most current fashionable video and image format decoding, supporting HDMI/VAG output and compatible with variable TFT LCD displays, greatly simplifying system design of whole machine and suitable for HD network play box, video advertising machine and frame advertising machine.




1. High Integration Density: integrating USB/LVDS/Ethernet/HDMI/WIFI in one and simplify design of whole machine. SD card can be inserted.

2. High Definition. Maximum supporting 1080P decoding and variable LCD screens with LVDS signal.

3. Built-in Amplifier: support dual channel 4R/20W,8R/10W amplifier.

4. Ample interfaces: support USB/serial ports/GPIO/ADC ports extension and can satisfy main peripheral in the market.

5. Completed function. Supporting function of portrait and landscape mode playing, video multi-screen, scrolling caption, timing switch, USB data input and so on.

Convenient management. Humanized playlist maker software, easy for advertising play management and control. Play log, easy for knowing the play.


Place of Origin: CHINA
Brand Name: Genevision
Model Number: MBOS-PA20
Certification: CE/ROHS/FCC/SGS



Allwinner A20 ,dual-core,main frequency 1.0 GHz

A20 or quad core A31S

DDR3(RAM) 1G/2G(optional)
ROM EMMC 4/8/16/32G(optional)
resolution Up to 1920x1080P
System Android 4.2 or 4.4

Play Mode


Support loop, timing, inter-cut and variable play modes


Internet Support 3G dongle,,Ethernet,support WiFi,wireless device extension.
Video Play support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc.
Image Format support BMP,JPEG,PNG,GIF
USB2.0 port 1xUSB HOST,1xOTG.
WIFI,BT built-in WIFI,BT4.0(optional )
Ethernet One RJ45 port,10M/100M self-adapting Ethernet
TF card TF card up to 32G
led Power led
remote Remote controller (optional)
HDMI output 1port support 1080P output
RTC time support
Timing Switch support
System Upgrade Support USB upgrade,network upgrade
Workable place Hotel ,supper market.


stem Android 5.1.1
Chipset Amlogic S905
CPU Quad core Cortex-A53 Prosessor(64 bit)
Processor Frequency Max 2Ghz
GPU Panta Core Mali-450
Menu Language English , Greek , Danish , Norwegian , Dutch , Arabic , Turkish , Japanese , Bahasa Indonesia , Korean , Thai ,
French , Hungarian , Malay , Slovak , Czech , Greek , Romanian , Swedish , German , Finnish , Chinese Simplified ,
Chinese Traditional , Bulgarian , Norwegian , Hebrew , Italian , Spanish , Portuguese , Russian , Vietnamese , Polish
Storage RAM/Memory Type DDR3 SDRAMBuilt-in Memory / RAM 2GB
Storage 16GB
Max Extended Capacity 64GB
Supports Card Type TF
External HDD 2TB
Data Transfer LAN Gigabit Ethernet
Wi-Fi 2*2 MIMO 802.11 AC Dual-band WIFI
BT Version V4.1
3G Function Yes
Wireless Keyboard/Mouse 2.4GHz / 5.8GHz
Support Formats Audio Formats MP3 , WMA , APE , FLAC , OGG , AC3 , AAC
Video Formats RM , PMP , AVC , FLV , VOB , MPG , DAT ,
MPEG , H.264 , H.265,MPEG1 , MPEG2 , RMVB , MPEG4 , WMV ,
Audio Codecs AC3 , LPCM , FLAC , HE-AAC
Video Codecs MPEG-1 , MPEG-2 , MPEG-4 , H.264 , VC-1,H.265
Picture Formats JPEG , BMP , PNG , GIF , TIFF , jps(3D) , mpo(3D)
Subtitle Formats MicroDVD [.sub] , SubRip [.srt] , Sub Station Alpha [.ssa] ,
Sami [.smi]idx+subPGS
Output Resolution 2160P Connections
HD 2.0
Audio Output HD, Optical audio, 3.5mm jack
Video Output HD
USB USB 2.0,Micro usb
Other Interface 1 x Microphone jack / 1 x Headphone
jack / 1 x TF card slot / 1 x OTG port / 3 x USB 2.0 / 1 x LAN / 1 x DC jack / 1 x K,
ensington lock / 1 x HD / 1 x IR Receiver / 1 x Optical SPDIF
Power Plug Specifications AU/US/EU/UK/JP Plug
Power Supply 100~240V
Other Features APP Built-in AD player
Compatible Application Facebook , Youtube , Skype , Netflix , AD player , Hulu
Firmware Upgrade
Certification CE / FCC / RoHS


Roof Mount Digital Menu Board Media Player A20 Android with TFT LCD Monitor 0
