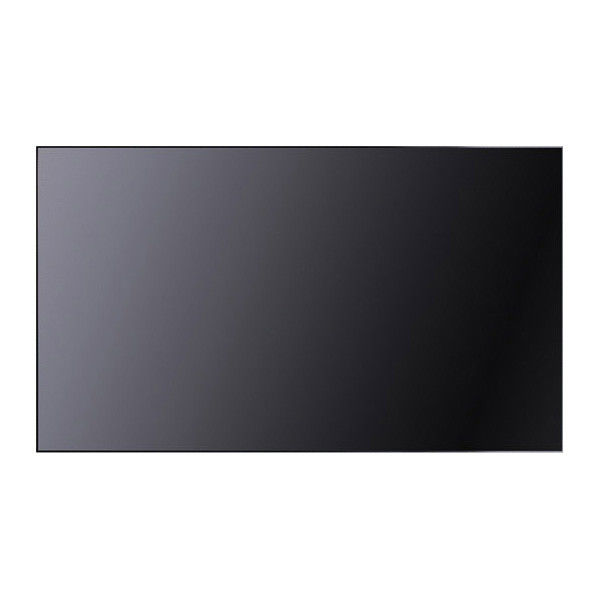

MD-490 LCD Video Wall Tv Monitor 1.8mm Super Slim Wall Mounted Digital Signage
LCD VIDEO WALL Details:
Narrow Bezel
Built-in Synced Playback and SoC*
HD Viewing Angle
Uniform Brightness
Accommodates portrait orientation and landscape
Integrated cable management lcd video wall
Modular mount for virtually unlimited configurations
Safe hardware option deters theft and tampering
VESA® Compatible up to 600 x 400mm
49″ 1.8mm ultra slim bezel provides a complete video wall systems that’s ideal for command & control centers, meeting room, shopping malls, stadiums, concert halls, and public transportation.
1920 x 1080 Full HD Resolution 49 Inch lcd panel,
1.8mm Ultra Slim Bezel
LED Backlight Built-In Video Processor for Daisy Chain
Display 24/4K Content Video Wall
Support HDMI, Display Port, and RS232C Input port
Working for 365 /24 / 7 Operation
Scissor, Swing Door, Floor Stand, Custom Design Mount
creating a ready-to-go lcd video wall solution
LCD video wall Description:
1).Borderless super slim 0.9mm even panel bezel and 1.8mm, enables immersive and near seamless viewing experiences on assembled video wall screens.
Panel Bezel : The black matrix section where an image is not displayed on the front panel(Bezel to Bezel) : Panel Bezel + Panel Bezel (Borderless type, no metal bezel)
2)HD Viewing Angle,Ensure clear picture quality, even when installed in arrays of more than four, ideal for installations in large spaces. The angle from the center of the screen to have 50 of the initial luminance.
3).Brightness Uniform,Samsung/LG’s DID original LED backlight technology provides high brightness to make sure HD picture. each screens, certain spots may display darker than others, high visibility and a consistent brightness across the whole screen.
4).LAN Daisy Chain Performance,The LAN daisy chain execute commands to control and monitor the screens, and even update their firmware.
5).Guide Bracket / Classified Port,A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.
6).Control Buttons,With 8 control buttons, easy to operate many different functions of the 49VM5C, controlling the OSD (On Screen Display) and change the input source ect..
LCD panel Specifications:
| LG Display Application Details | ||||
|
Basic Info |
Basic Info | Panel Brand | Panel Model | LD490DUN-THC4 |
| Diagonal Size | 49" | Model Alias | LD490DUN (TH)(C4) | |
| Panel Type | a-Si TFT-LCD , LCM | Storage Temp. | -20 ~ 60 °C | |
| Pixel Features | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch | 0.18642×0.55926 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.55926×0.55926 mm (H×V) | |
| Mechanical Size | Display Area | 1073.78×604 mm (H×V) | Outline Dim. | 1074.1×604.3 mm (H×V) |
| Outline Dim. | 1077.6×607.8 mm (H×V) | Outline Depth | 36.7/55.6 (Typ./Max.) mm | |
| Outline Features | Form Factor | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio | 16:9 (H:V) | Videowall Seam | 3.8 mm (Active to Active) | |
| Holes & Brackets | Side mounting holes, Rear mounting holes | |||
| Other Features | Weight | 13.5/14.2Kgs (Typ./Max.) | Surface | Antiglare (Haze 3%), Hard coating (2H) |
| Optical Details | ||||
| Basic Information | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 8 (Typ.)(G to G) ms | |
| Color Performance | Chromaticity | Wx:0.279; Wy:0.292 | Color Numbers | 16.7M/1.07B (8-bit / 8-bit + Dithering) |
| Color Temperature | 9972K | Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt | NTSC Ratio | 72% | sRGB | 98% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Frame Frequency | 60Hz | |||
| Reverse Scan | No | |||
| Power Consumption | 82.1W (Typ.) | |||
| Power supply | AC 110V - 240V, 50/60HZ | |||
| Storage Temperature | -7 to 65 Celsius degree | |||
| Normal Working Temperature | -5 to 65 Celsius degree | |||
LG Display Co., Ltd. LD490DUN-THC4 (Alias: LD490DUN (TH)(C4)) is a 49 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: Antiglare Surface, 8/10 bit Selectable, Wide Viewing Angle, Landscape / Portrait, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio , Super narrow bezel (3.8mm Active to Active). Based on its features,
